| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

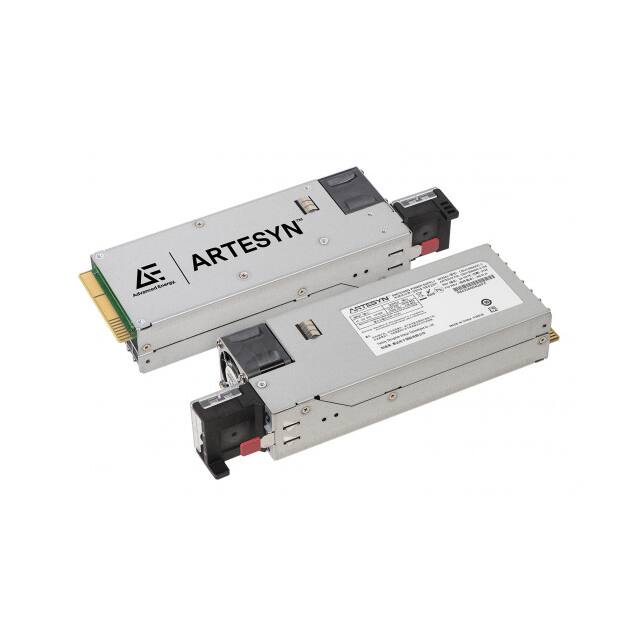

The CSU1300ADC-3-100 is a DC/DC converter manufactured by Artesyn Embedded Power. It provides a continuous output power of 1300W with a nominal output voltage of 12.2V. The converter operates within an input voltage range of -40 to -72 Vdc and offers a peak efficiency of 94%. It has a maximum input current of 50A at -40V and a maximum output current of 106.5A. The device features a hold-up time of 2.4 milliseconds at full load and an output ripple of 120 mV. Designed for industrial and power supply applications, it is suitable for systems requiring high power density and reliable voltage regulation. The converter is packaged for off-board mounting, compatible with standard power supply configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40 to -72 Vdc
1300 W
94% peak
106.5 A
2.4 ms
