CSS500-24/S
TDK Corporation

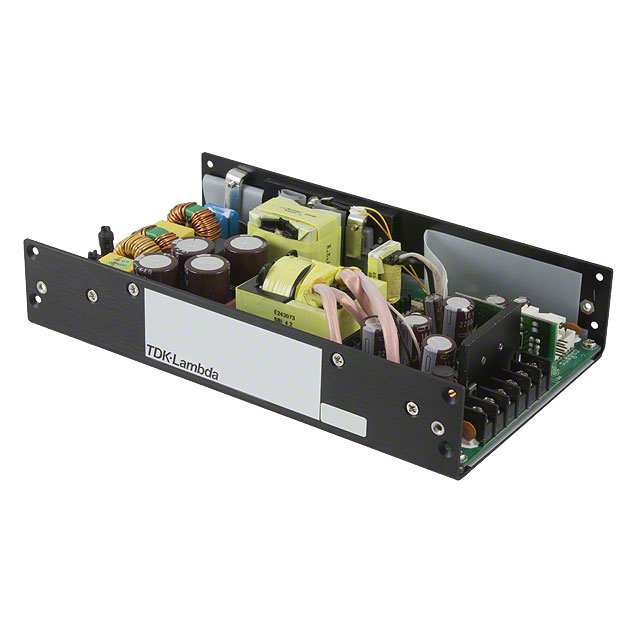

The TDK Corporation CSS500-24/S is an open frame AC DC converter with a 24V output and 15A current. It features a universal input voltage range of 90-264 VAC.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
The TDK Corporation CSS500-24/SI is an open frame AC/DC converter designed for various applications, including medical use. It operates with a universal input voltage range of 90 to 264 VAC, providing a stable 24V output at up to 15A, delivering 360W of power (500W with forced air).
This converter boasts an efficiency of 87% and features like adjustable output, load sharing, remote sense, and a standby output. Its compact dimensions of 228.6mm x 119.4mm x 41.4mm allow for chassis mounting.
Key electrical specifications include 4 kV isolation voltage and an operating temperature range of 0°C to 70°C with derating. The unit is CE approved.
90 to 264 VAC.
24V at 15A.
87%.
0°C to 70°C with derating.
Chassis mount.
Adjustable output, load sharing, remote sense, standby output, and universal input.
CE approval.
