CSS500-24/SI
TDK Corporation
The TDK Corporation CSS500-24/SI is an open frame AC/DC converter with a 24V output and 360W power rating. It features universal input and 87% efficiency.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

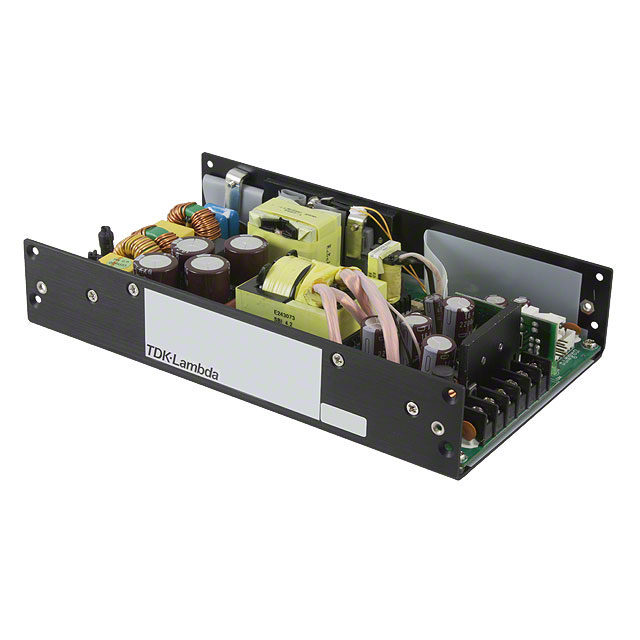

The TDK Corporation CSS500-24/S is an open frame AC DC converter designed for external or internal use. It provides a single 24V output with a maximum current of 15A, delivering 360W of power under natural convection (500W with forced air).
This converter operates with a universal input voltage range of 90 to 264 VAC and boasts an efficiency of 87%. Key features include adjustable output, load sharing, remote sense, and a standby output. Its isolation voltage is rated at 4 kV.
The unit is chassis mounted and has dimensions of 228.6mm x 119.4mm x 41.4mm. It is suitable for medical applications and operates within a temperature range of 0°C to 70°C with derating. The CSS500-24/S is CE approved.
90 to 264 VAC.
Open frame, chassis mount.
0°C to 70°C with derating.
15A.
360W (500W forced air).
4 kV.
228.6mm x 119.4mm x 41.4mm.
