| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 2018+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Diameter | |
| Features | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage |

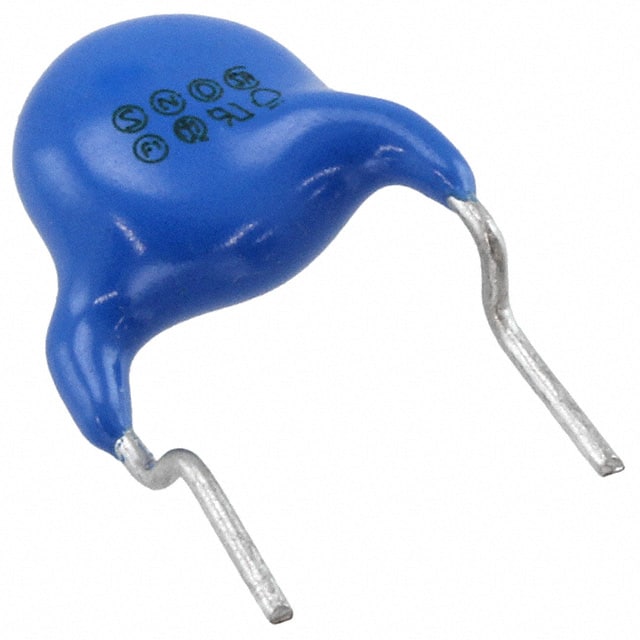

The TDK CS80ZU2GA222MYNKA is a high-voltage ceramic disc capacitor from the CS series, designed for safety applications. It offers a capacitance of 2200 pF with a tolerance of ±20% and a Z5U temperature coefficient. The component is rated for 300VAC/440VAC and is approved to safety standards X1 and Y2, making it suitable for line-to-line and line-to-ground applications.
This through-hole capacitor features a radial disc package with formed kinked leads and a lead spacing of 7.50 mm. The 8.00 mm diameter disc is designed for reliable PCB mounting. The operating temperature range is -25°C to +125°C, and the component is RoHS compliant and halogen-free compatible.
Typical applications include EMI filtering, surge protection, and other safety-critical circuits where compliance with safety standards is required. The high-voltage rating and safety approvals make it a dependable choice for power supply and industrial equipment designs.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 2200 pF.
The rated voltage is 300VAC/440VAC.
The tolerance is ±20%.
The temperature coefficient is Z5U.
The operating temperature range is -25°C to +125°C.
The capacitor is rated X1 and Y2.
The package is radial disc with a lead spacing of 7.50 mm and a diameter of 8.00 mm.
