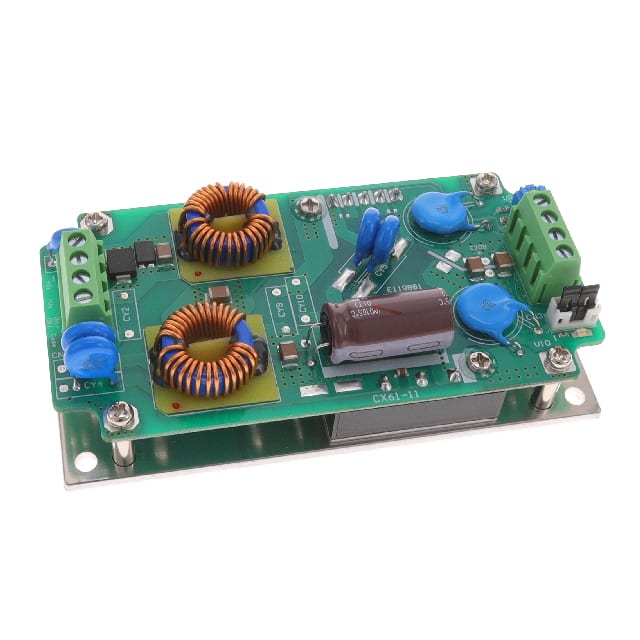

The Cincon CQB50W8-36S48-CMFC is a 50-watt isolated DC-DC converter designed for demanding applications. It offers a nominal 48VDC output voltage and a maximum output current of 1.05A, providing a total power output of 50W. The converter operates with a high efficiency of up to 90%.
This series features an 8:1 wide input voltage range, specifically 9.5 to 75 VDC, with a nominal input of 36 VDC. It includes essential protections such as Over-Temperature Protection (OTP), Over-Current Protection (OCP), Over-Voltage Protection (OVP), and Under-Voltage Lockout (UVLO). The operating case temperature range is -40°C to 105°C, with derating.
Designed for chassis mounting and baseplate cooling, this open-frame converter meets several industry standards including EN50155 for railway applications and IEC/EN/UL 62368-1 safety standards. Its robust construction and features make it suitable for ITE (Commercial) and Railway applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 48 VDC.
The maximum output current is 1.05A.
The operating input voltage range is 9.5 to 75 VDC.
The efficiency is up to 90%.
The operating case temperature range is -40°C to 105°C.
It is a chassis mount type.
