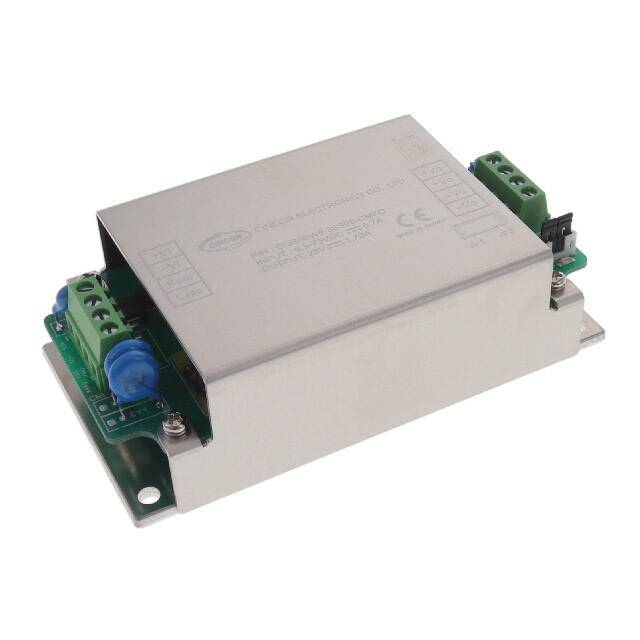

The Cincon Electronics Co. LTD CQB50W8-36S28-CMFD is a 50 Watt isolated DC-DC converter designed for demanding applications. It features an 8:1 input voltage range and a regulated 28VDC output, capable of delivering up to 1.79A.
Key electrical specifications include a high efficiency of up to 90% and an isolation voltage of 3000Vac. The operating temperature range is -40°C to 105°C, with derating. This converter is built to meet stringent industry standards, including EN50155 for EMC, environmental, and characteristic requirements, as well as UL62368-1 safety standards.
Designed for chassis mounting and baseplate cooling, this enclosed unit measures 116.8mm in length, 63.4mm in width, and 37.0mm in height. It is suitable for applications in ITE (Commercial) and Railway sectors. The converter includes protection features such as OTP, OCP, OVP, and UVLO, along with a built-in EMI filter.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 28 VDC.
The maximum output current is 1.79 A.
The power rating is 50 W.
The typical efficiency is 90%.
The operating temperature range is -40°C to 105°C (With Derating).
It is designed for chassis mounting.
It meets EN50155 and UL62368-1 standards.
