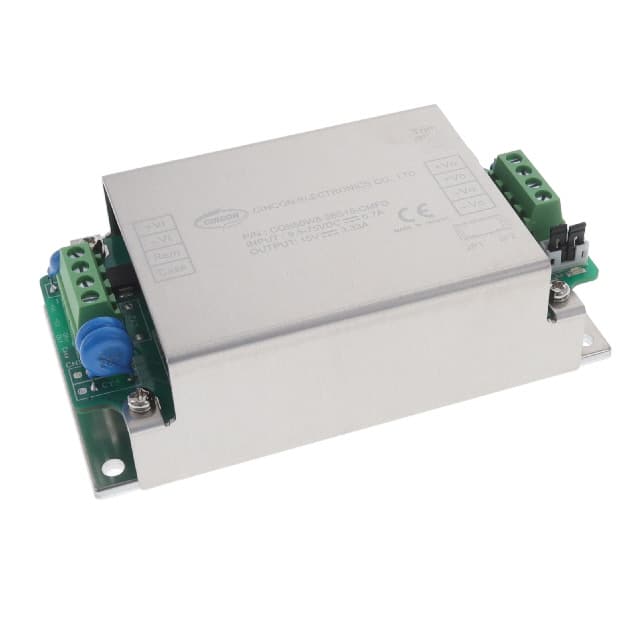

The Cincon CQB50W8-36S15-CMFD is a 50-watt isolated DC-DC converter from the CQB50W8 series. It features an 8:1 wide input voltage range of 9.5 to 75 VDC, a regulated 15 VDC output, and a maximum output current of 3.33A. This converter boasts up to 90% efficiency and operates with a fixed switching frequency.
Designed for demanding applications, it offers fully protected operation including Over-Temperature Protection (OTP), Over-Current Protection (OCP), Over-Voltage Protection (OVP), and Under-Voltage Lockout (UVLO). The unit provides 3000Vac I/O isolation and operates within a case temperature range of -40 to +105°C, with derating. It meets safety standards such as UL62368-1 and EN50155 for EMC, environmental, and characteristic requirements, including shock, vibration, fire, and smoke compliance.
This model is chassis mountable and baseplate cooled, making it suitable for integration into various systems. It includes a built-in EMI filter to reduce noise. The converter is approved by CE and is compliant with RoHS3 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9.5 to 75 VDC.
The converter provides a 15 VDC output voltage at a maximum current of 3.33A.
This DC-DC converter has a power rating of 50W.
The operating case temperature range is -40°C to +105°C, with derating.
It meets UL62368-1 and EN50155 standards for safety, EMC, and environmental characteristics.
This converter is designed for chassis mounting.
