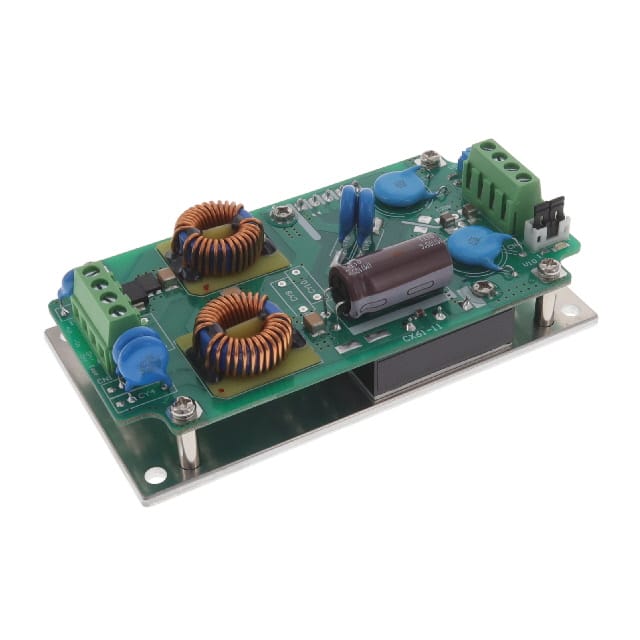

This Cincon CQB50W8-36S12-CMFC is a 50-watt isolated DC-DC converter designed for demanding applications. It offers a regulated 12VDC output and accepts a broad input voltage range of 9.5 to 75VDC, with a nominal input of 36VDC. The converter boasts up to 90% efficiency and features a fixed switching frequency for predictable performance.
Designed for robust operation, it includes comprehensive protection features such as Over-Temperature Protection (OTP), Over-Current Protection (OCP), Over-Voltage Protection (OVP), and Under-Voltage Lockout (UVLO). The unit provides 3000Vac I/O isolation and operates within a wide case temperature range of -40°C to +105°C. Its chassis mount, baseplate cooled design facilitates integration into various systems.
Compliance with standards like UL62368-1 (Reinforced Insulation), EN50155 for EMC, environmental, and characteristic requirements, and EN45545-2 for fire and smoke makes it suitable for railway and industrial applications. It also meets IEC/EN/UL 62368-1 safety standards and includes a built-in EMI filter.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9.5 to 75 VDC.
The output voltage is 12 VDC and the maximum output current is 4.17A.
The power rating is 50W.
The efficiency is up to 90%.
The operating case temperature range is -40°C to +105°C.
It complies with UL62368-1, EN50155, and EN45545-2 standards.
