CQB100W-110S48N-CMFD
Cincon Electronics Co. LTD

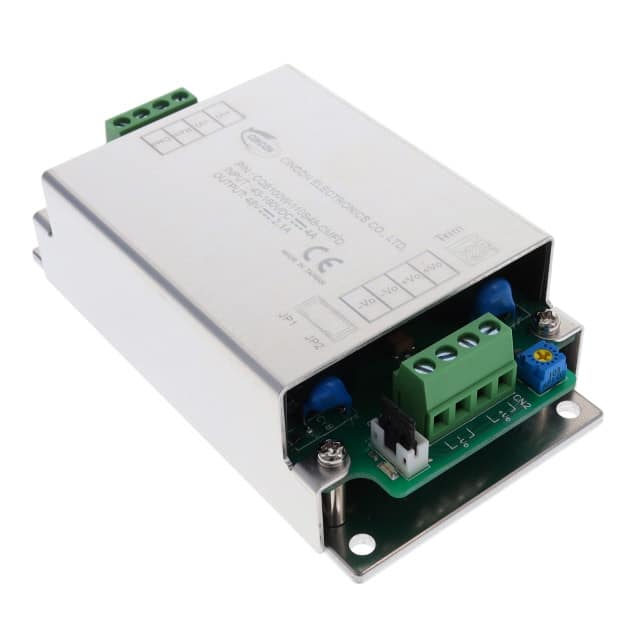

The Cincon Electronics CQB100W-110S48N-CMFD is an enclosed DC DC converter with 101W power output and 89.5% efficiency. It is designed for chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |
This Cincon DC DC converter, part number CQB100W-110S48-CMFD, offers a power output of 101W and is designed for chassis mounting. It operates with an efficiency of 89.5% and is suitable for ITE (Commercial) and Railway applications.
The converter features a single output and an isolation voltage of 3 kV. Its dimensions are 116.8mm in length, 63.4mm in width, and 34.2mm in height. The operating temperature range is from -40°C to 100°C, making it robust for various environmental conditions.
Compliance is indicated by standards such as 50155, 60950-1, and 62368-1, with CE approval. The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is Unaffected. This enclosed converter is designed for reliable power conversion in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Cincon CQB100W-110S48-CMFD has a power rating of 101W.
This DC DC converter supports chassis mounting.
The operating temperature range is -40°C to 100°C.
It is suitable for ITE (Commercial) and Railway applications.
The efficiency of this DC DC converter is 89.5%.
The dimensions are 116.8mm in length, 63.4mm in width, and 34.2mm in height.
