| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

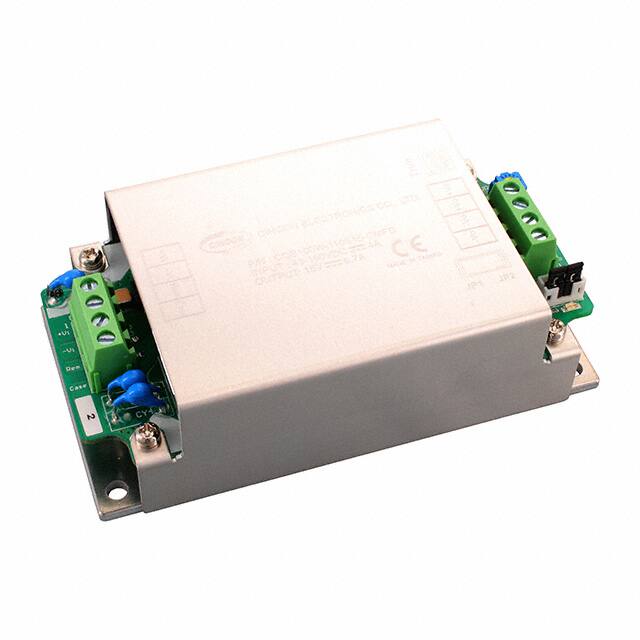

This Cincon CQB100W-110S15-CMFD is an enclosed DC DC converter designed for ITE (Commercial) and Railway applications. It provides a 101W output power with a 6.7A current rating and 15V output voltage. The converter boasts a high efficiency of 91% and an isolation voltage of 3 kV.
Designed for robust performance, it operates within a temperature range of -40°C to 100°C. The unit is chassis mountable, with dimensions of 116.8mm x 63.4mm x 34.2mm. It meets several standard certifications including 50155, 60950-1, and 62368-1, and is CE approved.
Key electrical specifications include a single output and a 101W power rating. The physical design facilitates easy integration into systems requiring a reliable power conversion solution. Its enclosed type and chassis mount make it suitable for industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output power is 101W.
The operating temperature range is -40°C to 100°C.
It is chassis mounted.
The efficiency is 91%.
Applications include ITE (Commercial) and Railway.
