| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

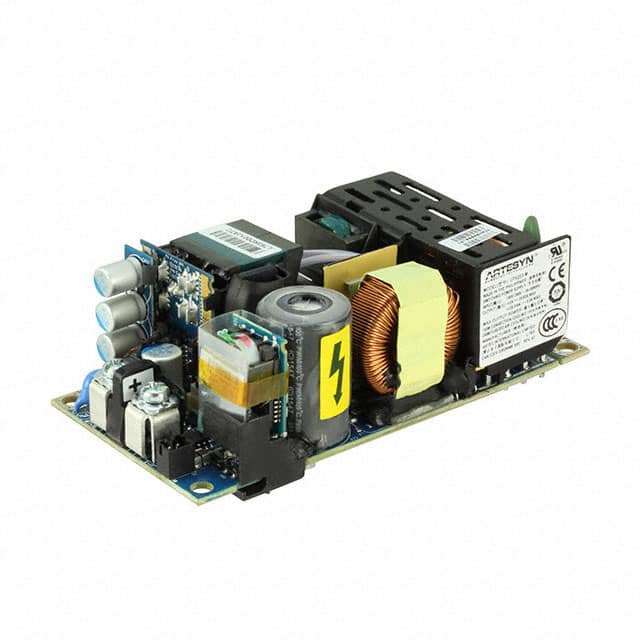

The Artesyn Embedded Power CPS250-M series, including the CPS253-M1 model, offers versatile AC-DC power conversion in a compact, open-frame design. These units are engineered for reliability and efficiency, delivering up to 250W with forced air cooling or 155W with natural convection.
The CPS253-M1 features a universal input voltage range of 90 to 264 VAC, making it suitable for global applications. It provides dual outputs, including a primary voltage and a 5V standby output, along with a 12V fan output. Key electrical specifications include 93% typical efficiency and active Power Factor Correction compliant with 61000-3-2.
Designed for demanding environments, the series boasts ITE and medical safety approvals, including 2x MOPP, and meets EN 62368-1/60601-1 standards. The power supplies incorporate a built-in Class B EMI filter and offer protections such as overvoltage, overcurrent, short circuit, and overtemperature.
With dimensions of 4.00" x 2.00" x 1.29", these power supplies are less than 1U high and suitable for Class I or Class II applications. They are ideal for light industrial systems and medical equipment requiring stable and efficient power.
The maximum power output is 250 W with forced-air cooling and 155 W with free-air natural convection.
The input voltage range is 90 to 264 VAC.
The CPS253-M1 provides a primary output and a 5V standby output, along with a 12V fan output.
The series holds Medical and ITE safety approvals, including EN 62368-1/60601-1, UL/CSA, CSA, CE LVD Mark, CCC, and UKCA Mark.
The operating temperature range is -20°C to 70°C.
The efficiency is typically 93%.
Yes, it features auto-recovery for both overcurrent and short circuit protection.
