| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

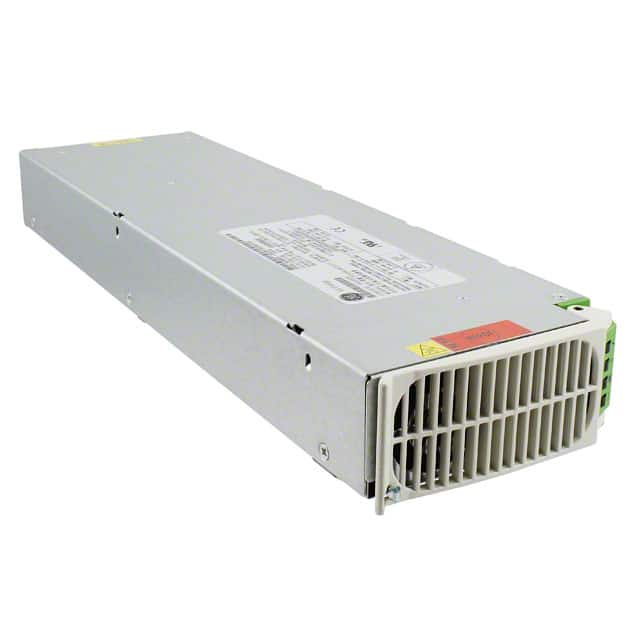

The ABB Power Electronics CP2725AC48TEZ-FB is a front-end AC DC converter designed for high-density applications. It boasts an impressive 95% efficiency and a compact 1RU form factor.
This rectifier operates with a universal input voltage range of 100-120/220-240 Vac. It can deliver up to 2725W at 52Vdc from a high-line input (220-240Vac) and 1200W from a low-line input (100-120Vac). The output voltage is programmable from 18V to 53Vdc, with a specific 5Vdc standby output available at 4W. It includes features like PMBus compliant dual I2C and RS485 serial busses, power factor correction meeting EN/IEC 61000-3-2 requirements, and active load sharing for redundant operation.
Designed for ITE (Commercial) applications, the CP2725AC48TEZ-FB is suitable for wide band power amplifiers. It supports hot insertion/removal and features overvoltage, overload, and over-temperature protection for reliable operation. The unit is internally controlled with a variable-speed fan for cooling.
Mounting is via a rack mount configuration. The dimensions are 351.8mm in length, 101.6mm in width, and 41.4mm in height.
The maximum output power is 2725W at 52Vdc.
The efficiency is typically 95%.
The output voltage is programmable from 18Vdc to 53Vdc.
The input voltage range is 100-120 Vac for low-line configuration and 220-240 Vac for high-line configuration.
It supports PMBus compliant dual I2C and RS485 serial busses.
The operating temperature range is -10°C to 75°C, with derating.
It is designed for rack mount installation.
