| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,707 pcs
|
9707 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Center Contact Material | |
| Center Contact Plating | |
| Conflict Minerals | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Ground Contact Material | |
| Ground Contact Plating | |
| Housing Color | |
| Housing Material | |
| Impedance | |
| Industrial Grade | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Packaging Type | |
| Shield Termination | |
| Tape & Reel |

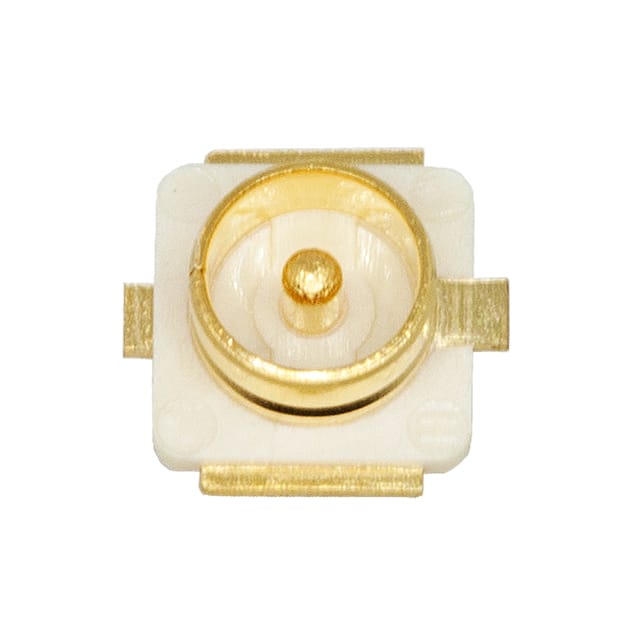

The Linx Technologies CONUFL001-SMD-T is a U.FL (UMCC) series coaxial connector designed for surface mount applications. It features a jack, male pin configuration with a snap-on fastening mechanism for secure mating. The connector is rated for 50 Ohm impedance and supports frequencies up to 6 GHz, making it suitable for RF and wireless applications.
The housing is made of LCP material rated UL94V-0 in white, with a brass center contact finished in gold plating and a phosphor bronze ground contact also gold plated. The connector operates over a temperature range of -40°C to +90°C. It is packaged in tape and reel for automated assembly.
The connector is compatible with IPEX MHF, MHFII, and Hirose U.FL interfaces. It is compliant with EU RoHS Directive, REACH (no SVHC >1000ppm), and uses DRC conflict-free sourced materials.
50 Ohm.
6 GHz.
Surface mount.
-40°C to +90°C.
Tape and reel.
Yes, RoHS3 compliant.
LCP, UL94V-0, white.
