| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Finish | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Orientation | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

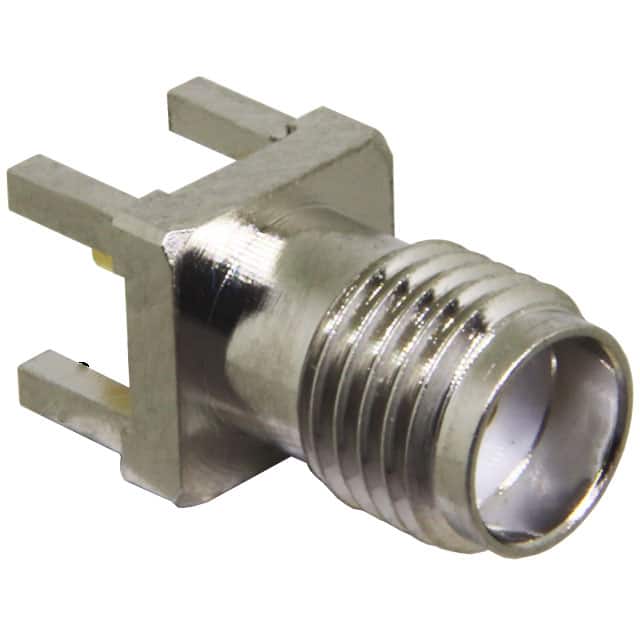

The CONSMA001 is an SMA straight through-hole receptacle from Linx Technologies Inc. It features a female socket contact with a threaded fastening mechanism for secure mating. The connector is designed for 50 Ohm impedance and supports frequencies up to 12.4 GHz, making it suitable for RF applications.
The center contact is made of beryllium copper, and the body has a nickel finish. Both the contact and shield are terminated via solder, and the connector is mounted through-hole on a PCB. The housing color is silver.
This connector is part of Linx's SMA connector family, which includes standard and reverse polarity variants in straight and right-angle orientations. The CONSMA001 is the standard polarity, straight, through-hole receptacle with nickel body finish.
50 Ohm.
12.4 GHz.
SMA straight through-hole receptacle with female socket.
Through hole, straight orientation.
Solder for both contact and shield.
Nickel.
