| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Thickness | |
| Body Finish | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Extended Body | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Orientation | |
| Polarity | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

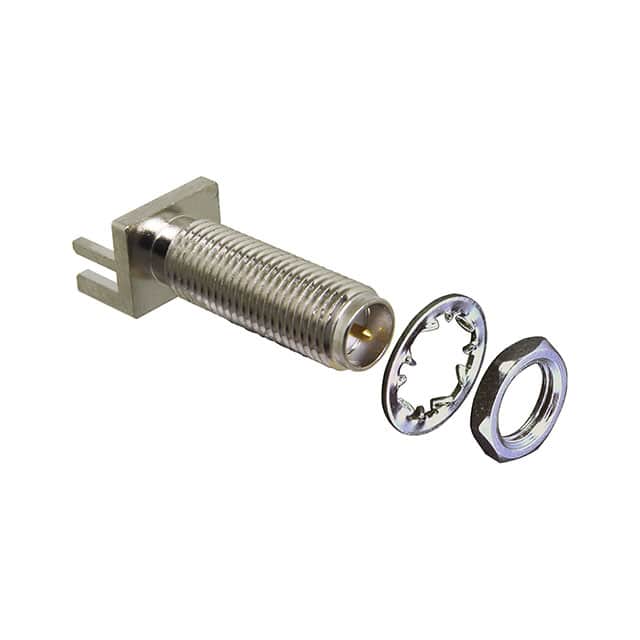

The CONREVSMA003.062-L is an RP-SMA reverse polarity straight edge mount receptacle from Linx Technologies. It features a male pin center contact and 50 Ohm impedance, supporting frequencies up to 12.4 GHz. This connector is designed for board edge mounting with end launch and panel mount capability. It includes a bulkhead front side nut mounting feature and threaded fastening. The board thickness is 0.062 in, and the part has an extended body for specific applications. Contact and shield termination are solder type. The center contact is beryllium copper, and the housing is silver with nickel body finish. The connector is RoHS3 compliant and has MSL 1 unlimited.
RP-SMA, reverse polarity (male pin).
50 Ohm.
12.4 GHz.
Board edge, end launch; panel mount with bulkhead front side nut.
0.062 in.
Solder for both contact and shield.
RoHS3 compliant (unverified).
