| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,245 pcs
|
1245 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

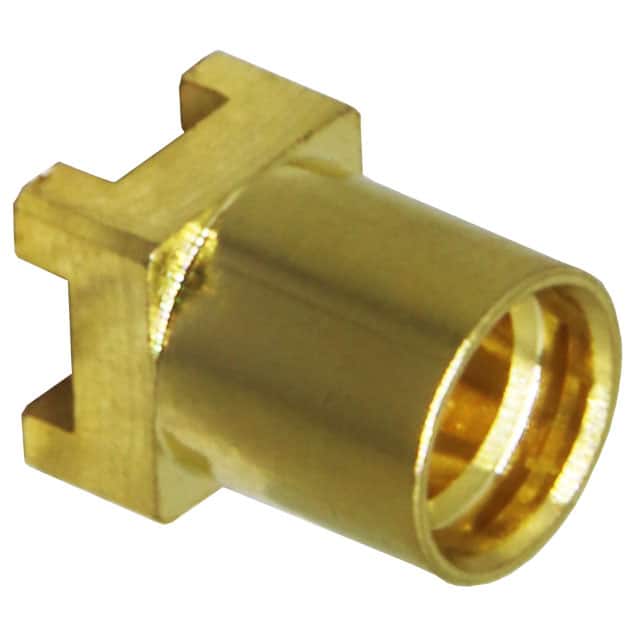

The CONMMCX001-SMD is an MMCX coaxial connector receptacle from Linx Technologies Inc. designed for surface mount applications. It features a female socket contact with beryllium copper center contact material and gold housing color. The connector offers 50 Ohm characteristic impedance and supports frequencies up to 6 GHz, making it suitable for RF signal interconnects in compact wireless devices.
This receptacle uses a snap-on fastening mechanism for quick and secure mating with MMCX plugs. Both the contact and shield terminations are solder type, enabling reliable attachment to PCB pads. The single-port design is optimized for space-constrained layouts where low-profile RF connectivity is required.
The connector is rated for surface mount assembly and is compatible with standard reflow soldering processes. Its gold-plated housing provides corrosion resistance and consistent electrical performance. The part is commonly used in applications such as GPS modules, cellular modems, and wireless IoT devices where a miniature coaxial interface is needed.
50 Ohm.
6 GHz.
Surface mount.
Snap-On.
Beryllium copper.
Gold.
