| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

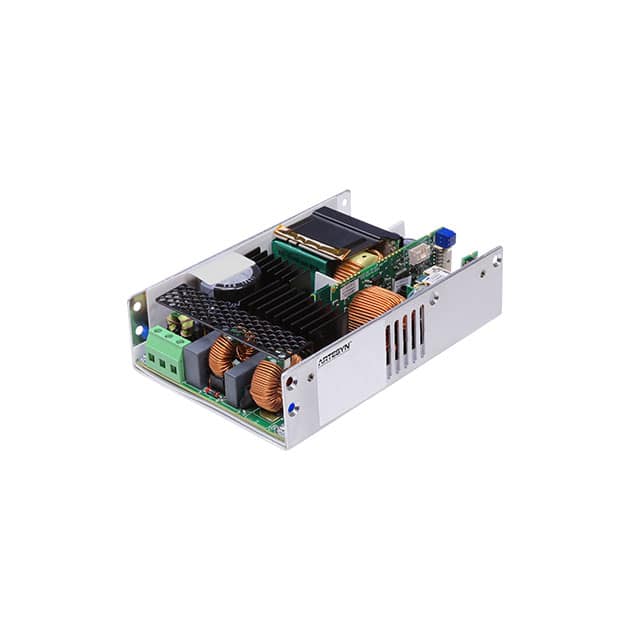

The Artesyn Embedded Power CNS653-MU is an open-frame AC-DC power supply from the CNS650-M series, designed for industrial and medical applications. It provides a 12V output with a maximum power of 400W under natural convection cooling, and up to 650W with forced air.
This power supply accepts a universal input voltage range of 90 to 264 VAC. Key features include adjustable output, load sharing, active Power Factor Correction (PFC), PMBus interface, remote on/off, remote sense, and a standby output. It is designed for chassis mounting and operates within an ambient temperature range of -20°C to 80°C with derating.
The unit has an isolation voltage of 4 kV and meets ITE (Commercial) and Medical application standards. Its compact dimensions of 152.4mm x 101.6mm x 39.2mm make it suitable for space-constrained designs. The CNS653-MU also includes features like dual input fuse and built-in Class B EMI filter.
The CNS653-MU provides a 12V output.
The maximum power output is 400W with free-air natural convection cooling and 650W with forced-air cooling.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to 80°C, with derating at higher temperatures.
The CNS653-MU supports chassis mounting.
The CNS653-MU is suitable for ITE (Commercial) and Medical applications.
