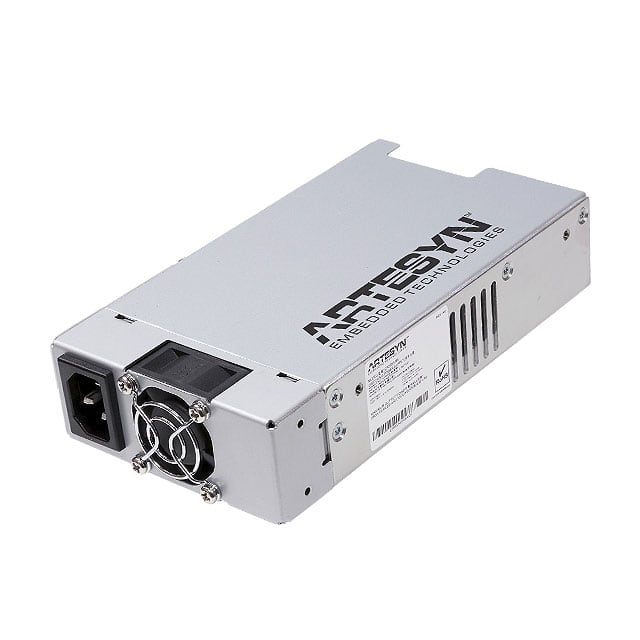

The Artesyn Embedded Power CNS653-ME is part of the CNS650-M series, offering a robust 650W AC-DC power supply solution. It accepts a universal input voltage range of 90 to 264 VAC, making it suitable for global applications. This model provides a single 12V output with a current rating of 54.2A.
Designed for versatility, the CNS653-ME supports both forced air and natural convection cooling, delivering up to 650W with forced air and 400W with natural convection. Key features include active power factor correction (PFC), PMBus interface for control and monitoring, load sharing capabilities, and remote sense functionality. It also includes a 12V fan output and a 5V standby output.
With dimensions of 177.8mm x 100.0mm x 40.0mm, this chassis mount unit is designed for industrial systems and medical applications, holding ITE and medical safety approvals. The operating temperature range is -20°C to 80°C, with a low no-load power consumption of less than 500 mW.
The maximum power output is 650 W with forced-air cooling and 400 W with free-air natural convection cooling.
The input voltage range is 90 to 264 VAC.
The output voltage is 12V and the output current is 54.2A.
The operating temperature range is -20°C to 80°C.
Yes, the CNS653-ME features a PMBus interface.
