| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

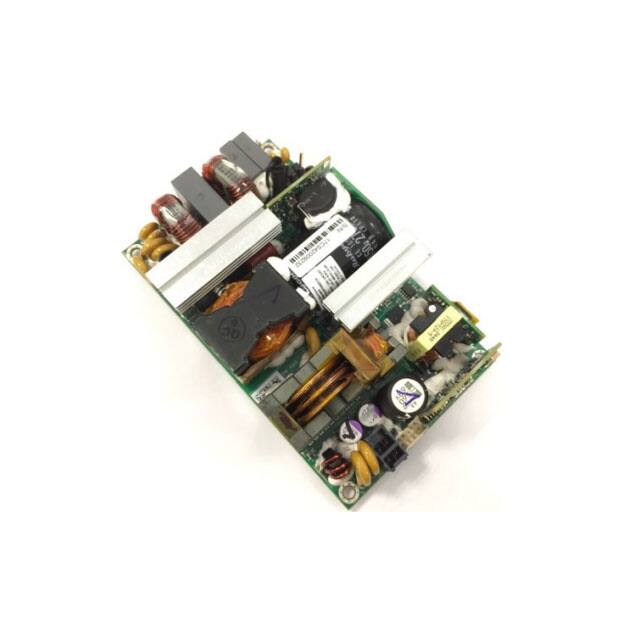

The ABB Power Electronics CLP0448FPXXXZ02A is an AC/DC converter designed for ITE (Commercial) applications. It delivers 448W of power with a 54V output voltage and an efficiency of 92%. This open frame converter is suitable for chassis mounting and offers features such as adjustable output, remote on/off, remote sense, standby output, and universal input.
The dimensions of the unit are 127.0mm x 76.2mm x 35.0mm. It operates within a temperature range of -40°C to 85°C with derating. The converter has a single output and is approved by CB, CE, cUL, and UL.
Key specifications include an output current of 8.3A and an isolation voltage of 3 kV. The HTSUS code is 8504.40.9530 and the ECCN is EAR99. The product is packaged in a box with a standard package quantity of 12.
The output voltage is 54V.
The output current is 8.3A.
The power rating is 448W.
The efficiency is 92%.
The operating temperature range is -40°C to 85°C with derating.
The converter is packaged in a box and is chassis mount.
It holds CB, CE, cUL, and UL approvals.
