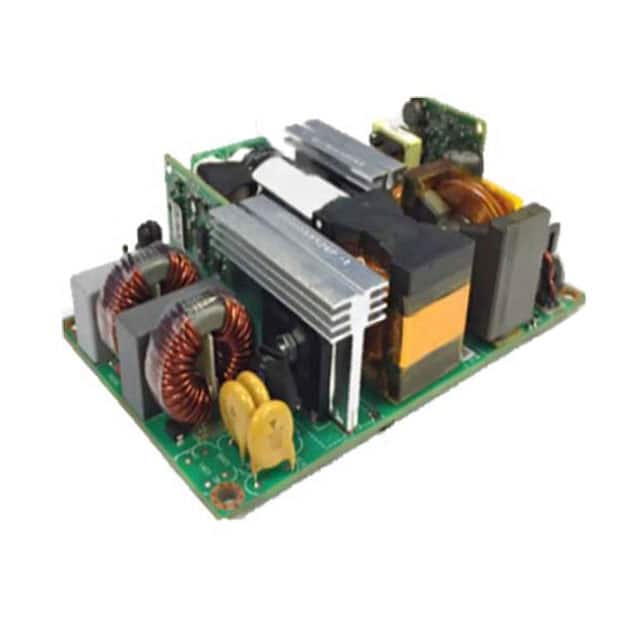

The CLP0424FPXXXZ01A from ABB Power Electronics Inc. is an open frame AC DC converter designed for ITE (Commercial) applications. This unit provides a single 24V output with a maximum power of 451W and an output current of 18.8A. It operates with an input voltage range of 90 to 265 VAC.
Key electrical specifications include 92% efficiency and a 3kV isolation voltage. The converter is designed for chassis mounting and measures 127.0mm in length, 76.2mm in width, and 35.1mm in height. It operates within a temperature range of -40°C to 85°C, with derating applied at higher temperatures.
Features such as Remote On/Off, Remote Sense, Standby Output, and Universal Output are included. The CLP0424FPXXXZ01A is approved by CB, CE, cUL, and UL, indicating compliance with various safety and performance standards.
90 to 265 VAC.
24V at 18.8A.
-40°C to 85°C with derating.
127.0mm x 76.2mm x 35.1mm (5.00" x 3.00" x 1.38").
92%.
Remote On/Off, Remote Sense, Standby Output, and Universal Output.
CB, CE, cUL, UL.
