| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

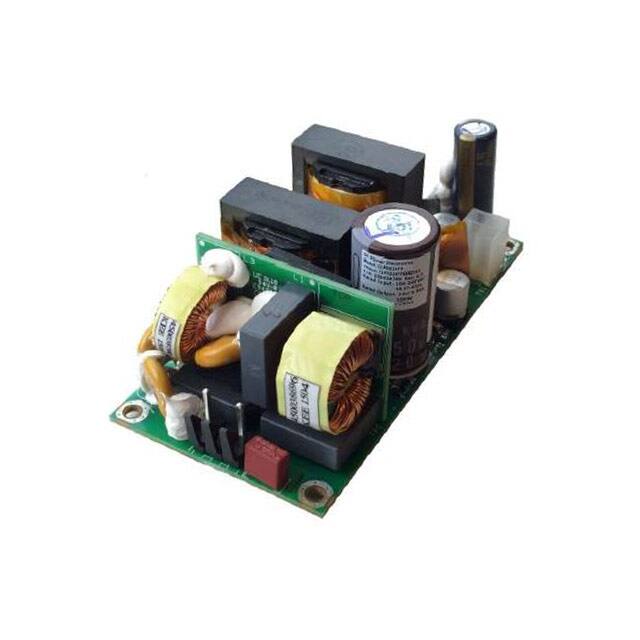

The ABB Power Electronics CLP0224FPXXXZ01A is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 200W with a 24V output voltage.
Key electrical specifications include an adjustable output, Power Factor Correction (PFC), and universal input capability. The converter operates with an efficiency of 93.1% and provides a 3kV isolation voltage. It is rated for a current of 8.33A.
Mechanically, the unit has dimensions of 101.6mm x 50.8mm x 33.0mm (4.00" x 2.00" x 1.30"). It is designed for chassis mounting. The operating temperature range is -40°C to 85°C, with derating applied.
Compliance certifications include CB, CE, CSA, cUL, TUV, and UL. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
The CLP0224FPXXXZ01A has a power output of 200W.
The output voltage is 24V.
It supports chassis mounting.
The operating temperature range is -40°C to 85°C (With Derating).
The dimensions are 101.6mm x 50.8mm x 33.0mm.
Approval agencies include CB, CE, CSA, cUL, TUV, and UL.
Yes, it is RoHS3 Compliant.
