| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (per Pin) | |
| Fastening Type | |
| Insertion Depth (Minimum @ Top Entry) | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead-Free Solderable | |
| Material Flammability Rating | |
| Maximum Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| SMT Lead Coplanarity | |
| Standard Packaging Option | |
| Style | |
| Termination | |
| Voltage Rating | |
| insertion_depth (Minimum @ Bottom entry) | |
| voltage_rating (Maximum @ AC) | |
| voltage_rating (Maximum @ DC) |

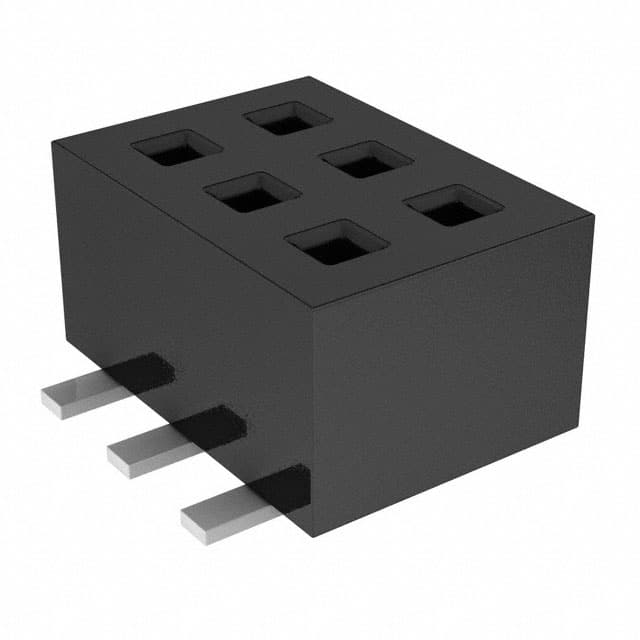

The Samtec CLP-103-02-L-D is a 6-position (2 rows x 3 positions) low profile dual wipe socket strip from the CLP series. Designed for board-to-board interconnect, it features a 1.27mm (0.050") pitch and surface mount termination with solder tails. The insulator is black Liquid Crystal Polymer (LCP) rated UL94 V-0. Contacts are made of phosphor bronze with 10 µ" (0.25 µm) gold plating over 50 µ" nickel, ensuring reliable low-resistance connections. The socket is rated for 3.4A per pin (2 pins powered) and 280 VAC / 395 VDC. Operating temperature range is -55°C to +125°C. It mates with Samtec FTSH, FTS, and FW series headers. Maximum mating cycles are 100 with the gold finish. Insertion depth is 1.40 mm minimum for top entry and 2.41 mm minimum for bottom entry. SMT lead coplanarity is 0.10 mm maximum for 02-35 positions. The part is lead-free solderable. Packaging options include tape and reel (suffix -TR or -FR) or tube/tray.
6 positions in 2 rows, all positions loaded.
1.27mm (0.050") pitch.
3.4A per pin (2 pins powered).
280 VAC and 395 VDC.
Surface Mount (SMT) with solder termination.
-55°C to +125°C.
100 cycles with 10 µ" gold finish.
