| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
320 pcs
|
320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

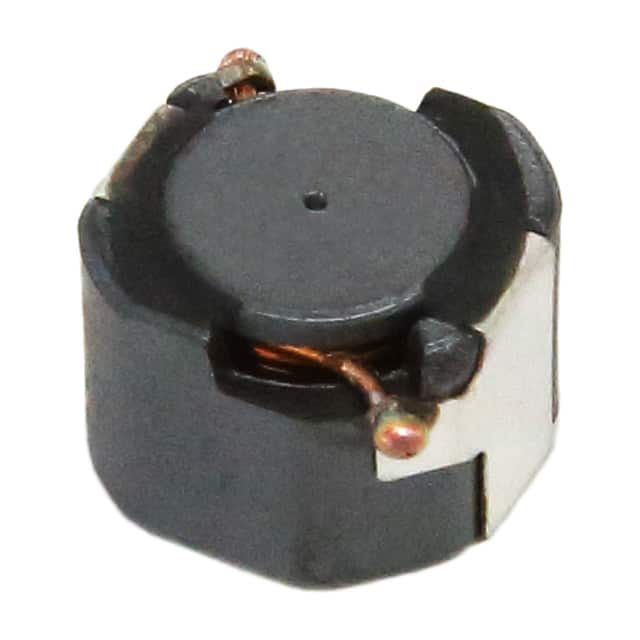

The TDK CLF6045T-1R0N-D is a surface mount shielded power inductor from the CLF6045T-D series. It offers an inductance of 1 µH with a tolerance of ±30% measured at 100 kHz. The typical DC resistance is 11 mΩ, with a maximum of 14.3 mΩ, enabling efficient power handling. The component is rated for a saturation current of 5 A (based on -10% inductance drop) and a rated current of 4.5 A (based on +30°C self temperature rise).
Designed with a ferrite core and shielded construction, this inductor minimizes electromagnetic interference and is suitable for high-density power circuits. It operates over a wide temperature range from -40°C to +150°C, including self-heating, making it ideal for harsh automotive environments. The part is AEC-Q200 qualified, ensuring reliability under vibration and thermal stress.
The inductor is packaged in a nonstandard case measuring 6.2 mm x 5.9 mm with a maximum height of 4.8 mm. It is supplied in Tape & Reel packaging for automated assembly. The component is lead-free (Pb Free) and compliant with RoHS3 and REACH directives. Common applications include automotive electronic control units, DC-DC converters, and power supply filters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.91 | $0.91 |
| 10+ | $0.75 | $0.75 |
| 25+ | $0.69 | $0.69 |
| 50+ | $0.65 | $0.65 |
| 100+ | $0.61 | $0.61 |
| 250+ | $0.57 | $0.57 |
| 500+ | $0.54 | $0.54 |
| 1,000+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 µH with a tolerance of ±30% at 100 kHz.
The rated current is 4.5 A based on +30°C self temperature rise; saturation current is 5 A based on -10% inductance drop.
The maximum DCR is 14.3 mΩ, with a typical value of 11 mΩ.
It is a surface mount component in a nonstandard package: length 6.2 mm, width 5.9 mm, and maximum height 4.8 mm. Supplied in Tape & Reel.
The operating temperature range is -40°C to +150°C, including self-temperature rise.
Yes, it is a shielded inductor to reduce electromagnetic interference.
Yes, it is AEC-Q200 rated and suitable for automotive electronics such as ECM and transmission control.
