| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dimensions | |
| Illumination | |
| Insulation Resistance | |
| Mounting Style | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

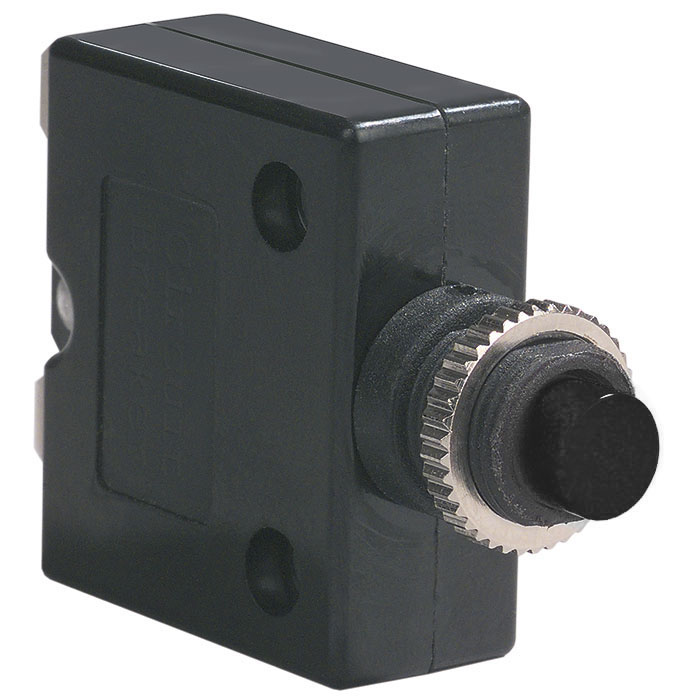

The Littelfuse Inc. CLB-053-12C1N-B-A is a single-pole, thermal circuit breaker from the CLB-Series, designed for reliable circuit protection. It offers a current rating of 5 Amps and supports voltage ratings of 48VDC and 250VAC.
Key electrical specifications include a dielectric strength of 2500 VAC/minute and an interrupting capacity of 2500 amps at 32 VDC. The breaker features a push-to-reset actuator and a panel mount design with an M12 mounting bush. It operates within a temperature range of -10°C to 60°C and has dimensions of 35mmL x 14.5mmW x 58.6mmH.
This circuit breaker is suitable for AC and DC extra-low voltage applications. Its compact design, quick connection, and simple mounting facilitate easy installation. The CLB-Series is available in various current ratings up to 40 Amps, with options for different bushing and termination styles upon request.
The current rating is 5 Amps.
It supports 48VDC and 250VAC.
It is a single pole (1 pole) circuit breaker.
It features a push-to-reset actuator.
The operating temperature range is -10°C to 60°C.
The overall dimensions are 35mmL x 14.5mmW x 58.6mmH.
Approval agencies include CE, cUL, TUV, UL1077, and UL1500.
