| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 100 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Current | |
| Height | |
| Junction Temperature | |
| Length | |
| Lumens | |
| Luminous Flux | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Voltage | |
| Size | |
| Storage Temperature | |
| Supplier Device Package | |
| Voltage | |
| Width |

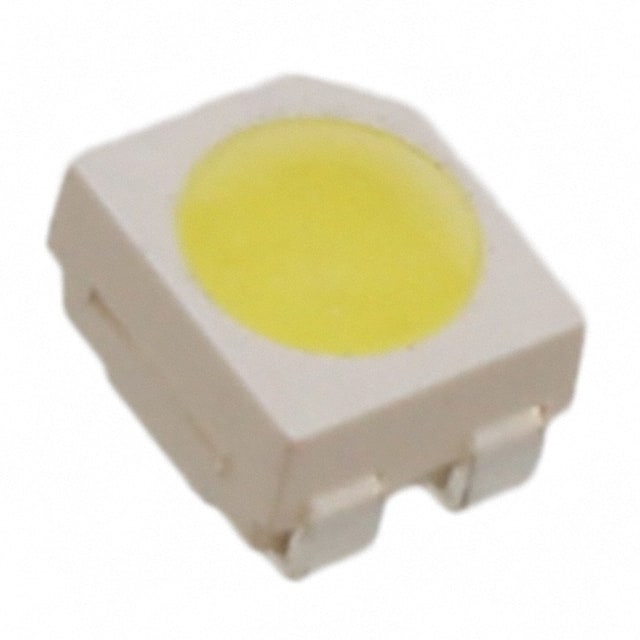

This CreeLED, Inc. CLA1A-WKW-CXBYB453 is a cool white Surface Mount SMD LED. It operates at a typical forward current of 30mA and a forward voltage of 3.6V, with a maximum of 4.2V. The LED emits a luminous flux of 7000mlm with a typical luminous intensity of 2800mcd.
Featuring a color temperature of 5500K and a Color Rendering Index (CRI) of 72, this LED is suitable for applications requiring accurate color representation. Its dimensions are 3.2mm in length and 2.8mm in width, with a height of 2.10mm. The package type is 4-PLCC, designed for surface mounting.
The operating temperature range for this component is -40°C to 100°C, with a storage temperature range also from -40°C to 100°C. It has a junction temperature limit of 110°C and a power dissipation of 147mW at 25°C. The LED is RoHS3 compliant and lead-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical color temperature is 5500K.
The typical CRI is 72.
The LED measures 3.20mm in length and 2.80mm in width.
The typical forward current is 30mA.
The typical forward voltage is 3.6V.
The operating temperature range is -40°C to 100°C.
Yes, it is RoHS3 Compliant.
