LYE6SF-AABA-46-1-Z
Unknown
This OSRAM Opto Semiconductors Inc LY E6SF-AABA-46-1-Z is a yellow LED TOPLED. It emits light at 590nm with a typical luminous intensity of 1680mcd.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,338 pcs
|
1338 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| SVHC Present | |
| Viewing Angle |

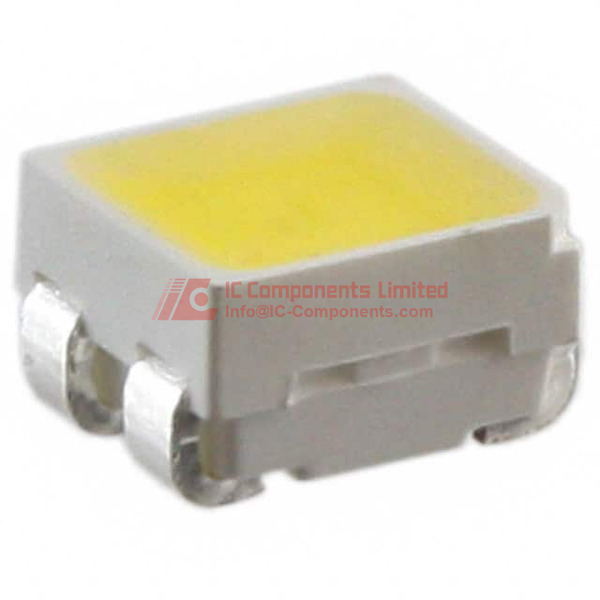

The WOLFSPEED CLA1A-WKW-CXAYB153 is a warm white LED designed for indication applications. It operates with a typical forward voltage of 3.2V and a maximum current of 80mA, with a standard test current of 30mA.
This LED provides a luminous flux of 9lm at 25°C and 30mA, with a luminous efficacy of 35 lm/W. It features a color rendering index (CRI) of 80, indicating good color representation. The viewing angle is a wide 120°, suitable for general illumination and indicator purposes.
Packaged in a 4-PLCC surface mount package, the CLA1A-WKW-CXAYB153 has a seated height of 2.10mm. Its dimensions are 3.20mm x 2.80mm. The thermal resistance of the package is 120°C/W.
This component is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 3.2V.
The viewing angle is 120°.
Typical luminous flux is 9 lumens at 30mA test current.
The maximum current is 80mA.
It comes in a 4-PLCC surface-mount package.
The CRI is 80.
