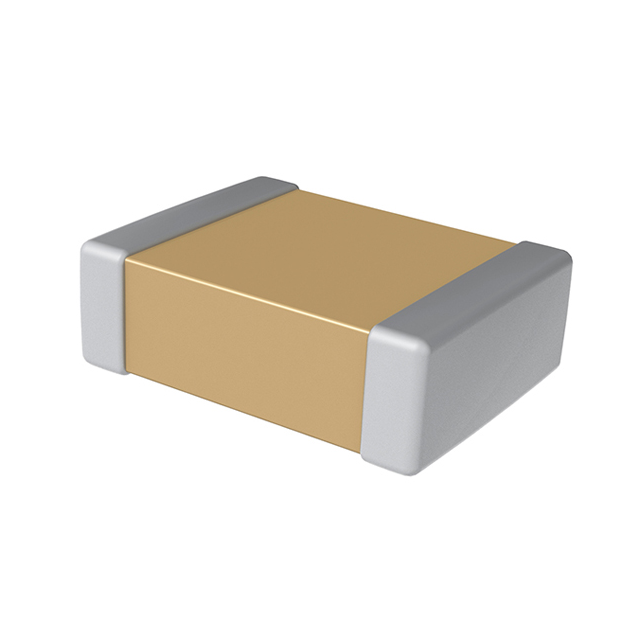

CKC21C472JJGACAUTO KEMET CKC21C472JJGACAUTO is a surface mount MLCC capacitor with 4700pF capacitance, 1700V voltage rating, C0G/NP0 dielectric, and ±5% tolerance.
Mfr Part #:

CKC21C472JJGACAUTO

Available from 1 distributors
Mfr Name: Yageo
Yageo
KEMET CKC21C472JJGACAUTO is a surface mount MLCC capacitor with 4700pF capacitance, 1700V voltage rating, C0G/NP0 dielectric, and ±5% tolerance.
✓ Total Stock: 70 pcs

CKC21C472JJGACAUTO Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
70 pcs
On Request
70 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CKC21C472JJGACAUTO Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Capacitance
Features
Length
Mounting Type
Operating Temperature
Package / Case
Ratings
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
Width
View Similar Products (0)

CKC21C472JJGACAUTO Description

Short technical summary and product information.

The KEMET CKC21C472JJGACAUTO is a multilayer ceramic capacitor (MLCC) designed for automotive applications. It features a capacitance of 4700 pF (4.7 nF) with a voltage rating of 1700V (1.7kV). The capacitor uses C0G/NP0 dielectric, which offers excellent temperature stability over the -55°C to +150°C operating range. The part is qualified to AEC-Q200 automotive standard and features low ESL, high voltage, and high temperature characteristics.



The capacitor is housed in a 2220 (5750 Metric) surface mount package with dimensions of 5.70mm length and 5.00mm width, with a maximum thickness of 1.80mm. It has a moisture sensitivity level of 1 (unlimited) and is RoHS3 compliant and REACH unaffected.



Typical applications include automotive electronics such as engine control units, power train systems, and other high-voltage, high-reliability circuits. The low ESL and high temperature rating make it ideal for filtering and decoupling in harsh environments.

CKC21C472JJGACAUTO Quick Information

Product Type: MLCC Capacitor
Series: KC-LINK
Canonical Name: KEMET CKC21C472JJGACAUTO 4700pF 1700V C0G NP0 Automotive MLCC Capacitor
Subcategory: High Voltage Automotive MLCC

CKC21C472JJGACAUTO Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

CKC21C472JJGACAUTO Features

  • 4700pF capacitance with ±5% tolerance.
  • Rated for 1700V DC operation.
  • C0G/NP0 temperature stable dielectric.
  • AEC-Q200 automotive qualified.
  • Surface mount 2220 package.

CKC21C472JJGACAUTO Applications

  • Used in automotive engine control modules.
  • Ideal for high voltage power supplies.
  • Suitable for filtering and decoupling circuits.
  • Applicable in harsh environment electronics.

CKC21C472JJGACAUTO FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of CKC21C472JJGACAUTO?

4700 pF (4.7 nF).

What is the voltage rating of this capacitor?

1700V (1.7kV).

What is the temperature coefficient of CKC21C472JJGACAUTO?

C0G, NP0.

What is the capacitance tolerance?

±5%.

What is the package size and mounting type?

2220 (5750 Metric) surface mount package.

What is the operating temperature range?

-55°C to +150°C.

Is this capacitor AEC-Q200 qualified?

Yes, it is rated AEC-Q200.
