| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Diameter | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage |

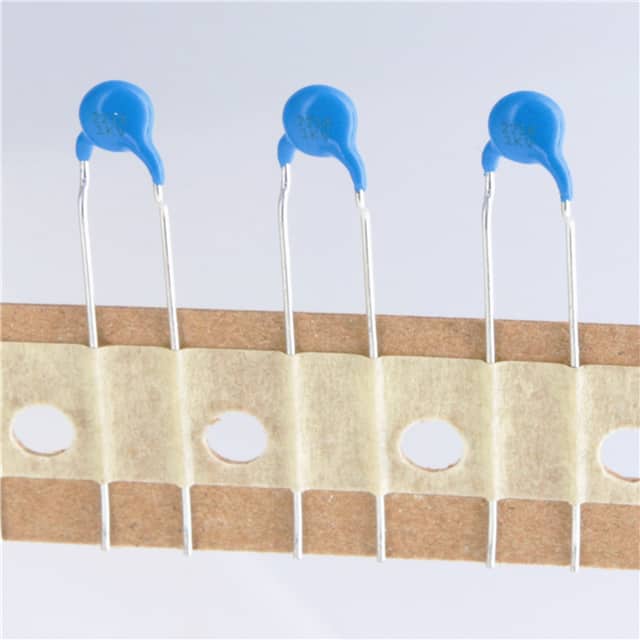

The CK45-B3AD221KYVNA is a high voltage ceramic disc capacitor from TDK Corporation's CK45 series. It offers a capacitance of 220pF with ±10% tolerance and a rated voltage of 1000V (1kV). The component is housed in a radial, disc package with formed kinked leads and a lead spacing of 5.00mm. It has a diameter of 5.50mm and a height of 9.50mm.
This capacitor is designed for general purpose applications where high voltage capability is required. The operating temperature range is -25°C to 105°C, making it suitable for a variety of environments. The temperature coefficient is designated as B, indicating a specific temperature characteristic.
The through hole mounting style with formed leads allows for reliable insertion and soldering on printed circuit boards. The CK45 series is known for its robust construction and high voltage performance.
220pF
1000V (1kV)
±10%
-25°C to 105°C
Radial, Disc
5.00mm
RoHS3 Compliant (unverified)
