Mfr Part #:

CCS050M12CM2

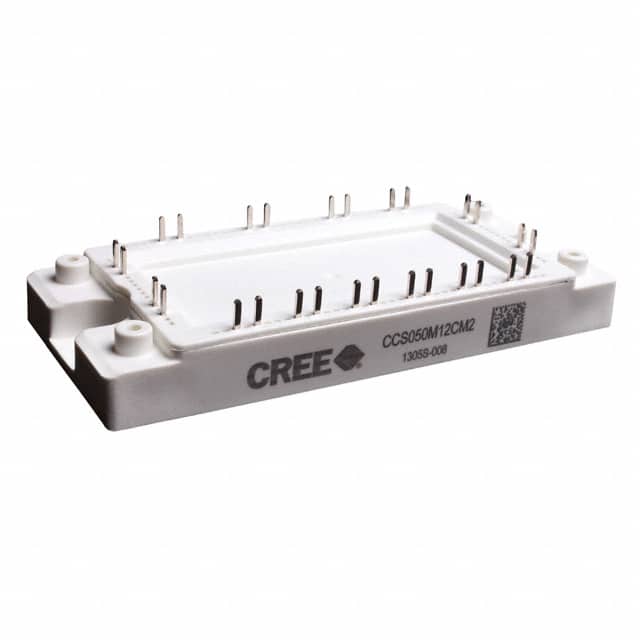

Name: CCS050M12CM2
Brand: WOLFSPEED
SKU: CCS050M12CM2

Mfr Name: WOLFSPEED

Description:

MOSFET 6N-CH 1200V 87A MODULE

Stock on Request

CCS050M12CM2 Description

Short technical summary and product information.

MOSFET 6N-CH 1200V 87A MODULE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	WOLFSPEED
Configuration	6 N-Channel (3-Phase Bridge)
Current	87A (Tc)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Gate Charge (Qg) (Max) @ Vgs	180nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	2810pF @ 800V
Mounting Type	Chassis Mount
Operating Temperature	150°C (TJ)
Power	337W
Rds On (Max) @ Id, Vgs	34mOhm @ 50A, 20V
Supplier Device Package	Module
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	2.3V @ 2.5mA
