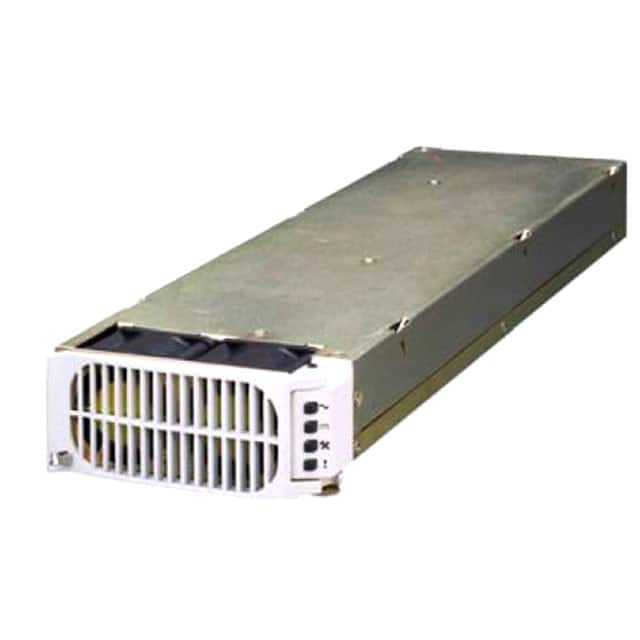

The ABB Power Electronics CC109139408 is a high-density, front-to-back airflow rectifier designed for distributed power systems. This 2000W front-end AC/DC converter operates with a universal input voltage range of 100-240Vac and provides a nominal output voltage of 54Vdc, with programmable output from 44V to 58Vdc. It delivers 2000W from 200-240Vac input and 1200W from 100-120Vac input.
Key features include PMBus compliant dual I2C and RS485 serial bus communications, power factor correction meeting EN/IEC 61000-3-2 requirements, and 2250 output isolation for PoE applications. The unit offers DC output over-voltage and over-current protection, AC input over-voltage and under-voltage protection, and over-temperature warning and protection. It supports redundant, parallel operation with active load sharing and hot insertion/removal.
Designed for ITE (Commercial) applications, this converter has a compact 1-RU form factor and a rack mount type. It operates within a temperature range of -25°C to 70°C with derating. The dimensions are 351.8mm in length, 101.6mm in width, and 42.2mm in height.
For 1200W operation, 100-120Vac; for 2000W operation, 200-240Vac.
Rack mount.
-25°C to 70°C with derating.
Programmable from 44V to 58Vdc, with a default of 54Vdc.
2000W from a 200-240Vac input, or 1200W from a 100-120Vac input.
PMBus-compliant dual I2C and RS485 serial bus communications.
DC output over-voltage and over-current protection, AC input over-voltage and under-voltage protection, and over-temperature warning and protection.
