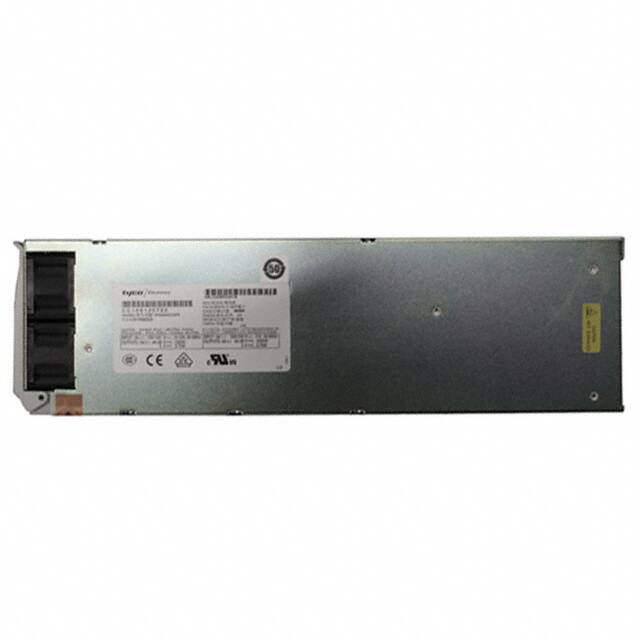

The ABB Power Electronics CC109120722 is a high-density, front-to-back airflow rectifier designed for distributed power systems. This 2000W AC/DC converter operates with a universal input voltage range and provides a nominal 54Vdc output.
Key features include constant power output from 52-58 Vdc, PMBus compliant dual I2C and RS485 serial bus communications, and active load sharing for redundant, parallel operation. It offers 2000W output from 200-240 Vac input and 1200W from 100-120 Vac input. The output voltage is programmable from 44V to 58 Vdc.
This power supply is built for demanding applications with features like power factor correction meeting EN/IEC 61000-3-2 requirements, DC output over-voltage and over-current protection, AC input over-voltage and under-voltage protection, and over-temperature warning and protection. It also supports hot insertion/removal.
Designed for ITE (Commercial) applications, the CC109120722 is housed in a compact 1-RU rack-mount form factor. It is tested to IEEE802.3 compliance with 2250V isolation for PoE applications. The operating temperature range is -25°C to 70°C with derating.
The output voltage is 54 Vdc, programmable from 44 Vdc to 58 Vdc.
The maximum output power is 2000W from a 200-240 Vac input.
The input voltage range is 100-120/200-240 Vac.
Key features include PMBus compliant communications, active load sharing, hot-swappable operation, and over-voltage/over-current protection.
The operating temperature range is -25°C to 70°C with derating.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
