CBW57-HS-20A-5X
OptiFuse

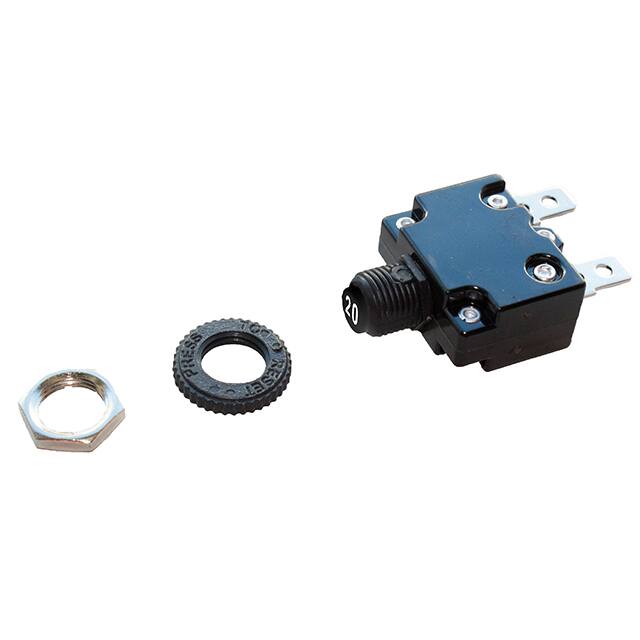

The OptiFuse CBW57-HS-20A-5X is a thermal circuit breaker designed for overcurrent protection. It features a push-to-reset actuator and panel mount capability.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Input Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |
The OptiFuse CBW57-PS-20A is a thermal circuit breaker designed for reliable overcurrent protection. It operates within an amperage range of 3A to 30A and has a voltage rating of 125/250 VAC and 32/50 VDC.
Key electrical specifications include a dielectric strength greater than 1500 VAC and an insulation resistance exceeding 100M Ω. The breaker offers various interrupt ratings depending on the current and voltage, such as 1000A at 125/250 VAC for 3-30A.
This circuit breaker features a push-to-reset actuator and a panel mount design for easy integration into systems. The operating ambient temperature range is -10°C to +60°C. It is ignition protected to SAE J1171 and UL1500 standards.
Agency listings include CCC, CSA, cURus, TUV, and UR, indicating compliance with various safety and performance standards. The device is suitable for applications requiring occasional overcurrent protection.
The OptiFuse CBW57-PS-20A has a current rating of 20A.
The voltage rating is 250V AC and 32V DC.
The CBW57-PS-20A is a thermal circuit breaker.
It features a panel mount type.
The operating ambient temperature is -10°C to +60°C.
Yes, it is ignition protected to SAE J1171 and UL1500.
The RoHS status is RoHS3 Compliant, and the REACH status is REACH Unaffected.
