CBW57-PS-10A-P
OptiFuse

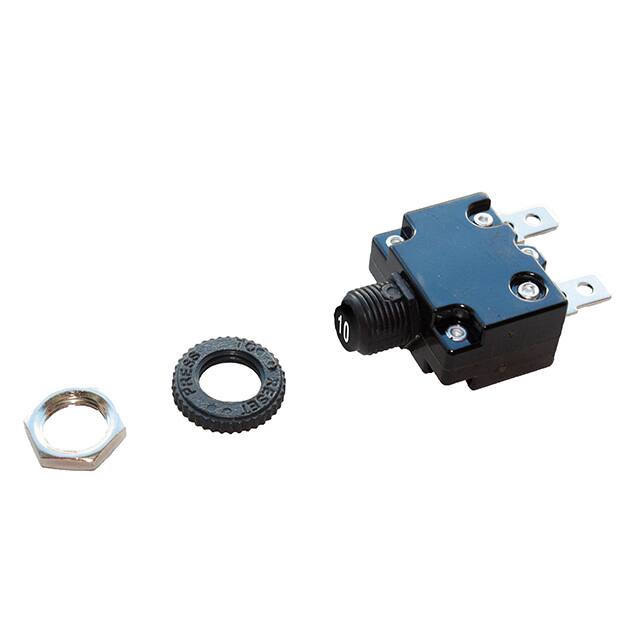

The OptiFuse CBW57-PS-10A-P is a 10A thermal circuit breaker designed for panel mounting. It features a push-to-reset actuator and operates at up to 250 VAC.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Frequency | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |
The OptiFuse CBW57-PS-10A is a thermal circuit breaker designed for reliable overcurrent protection. It offers a current rating of 10A and a voltage rating of 250VAC, with a DC voltage rating of 32VDC.
Key electrical specifications include a 50-60 Hz frequency range, dielectric strength of over 1500 VAC, and an insulation resistance greater than 100MΩ at 500 VDC. The breaker has an interrupt rating of 1000A at 125/250 VAC and 400A at 50 VDC. It is built for durability with a contact endurance rated for 500 cycles at 125 VAC with 150% of rated current.
This circuit breaker features a convenient push-to-reset actuator and a panel mount design for easy integration into control panels and equipment. The operating ambient temperature range is from -10°C to +60°C. It is listed by UR, CCC, TUV, and VDE agencies, ensuring compliance with various industry standards.
Designed for occasional overcurrent protection, the CBW57-PS-10A is suitable for applications requiring robust and resettable circuit protection.
Maximum 250VAC and 50VDC.
-10°C to +60°C.
1000A at 125/250VAC for 3-30A, 400A at 125/250VAC for 3-20A, 300A at 50VDC for 3-30A.
Yes, to SAE J1171 and UL1500.
Within 60 seconds.
Greater than 1500VAC for 1 minute.
Panel mount.
