Mfr Part #:

CBS-6P

Mfr Name: OptiFuse

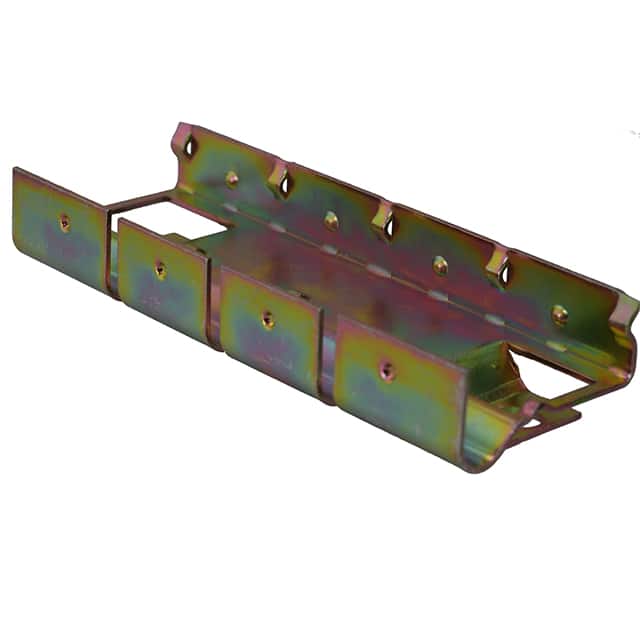

The OptiFuse CBS-6P is a steel mounting rail designed for interior mounting of ACB-N and MOCB-N circuit breakers. It accommodates up to 6 circuit breakers.

Stock on Request

CBS-6P Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	OptiFuse
Accessory Type	Mounting
For Use With	ACB-N, MOCB-N Circuit Breakers
Material	Steel plated with yellow zinc dichromate
Mounting Type	Rail Interior Mounting

View Similar Products (0)

CBS-6P Description

Short technical summary and product information.

The OptiFuse CBS-6P is a robust mounting rail designed for interior rail mounting applications. Constructed from steel plated with yellow zinc dichromate, it offers durability and corrosion resistance.

This mounting rail is specifically engineered to be used with ACB-N or MOCB-N circuit breakers. The CBS-6P model has the capacity to accommodate up to 6 individual circuit breakers, making it suitable for consolidating multiple protection devices.

Key mechanical dimensions include a mounting hole spacing of 1.21 inches (30.7 mm) and an overall length of 1.94 inches (49.4 mm). These dimensions ensure compatibility with standard rail systems and associated components.

CBS-6P Quick Information

Product Type: Mounting Rail

Canonical Name: OptiFuse CBS-6P Mounting Rail

Subcategory: Mounting Accessories

CBS-6P Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CBS-6P Features

Securely accommodates six circuit breakers.
Features 30.7mm mounting hole spacing pattern.
Constructed from steel with yellow zinc plating.
Designed specifically for interior DIN rail mounting.
Measures 49.4mm overall length for compact fit.

CBS-6P Applications

Ideal for industrial control panel assembly.
Used in commercial building electrical distribution.
Supports modular circuit breaker installations.
Facilitates organized wiring management systems.

CBS-6P FAQs

5 frequently asked questions generated from this part’s specifications.

What type of circuit breakers can be used with the OptiFuse CBS-6P mounting rail?

The CBS-6P mounting rail is designed to be used with ACB-N or MOCB-N circuit breakers.

How many circuit breakers can the OptiFuse CBS-6P accommodate?

The CBS-6P mounting rail can accommodate up to 6 circuit breakers.

What are the dimensions of the OptiFuse CBS-6P mounting rail?

The mounting hole spacing is 1.21 inches (30.7 mm) and the overall length is 1.94 inches (49.4 mm).

What material is the OptiFuse CBS-6P mounting rail made of?

The mounting rail is made of steel plated with yellow zinc dichromate.

What is the mounting type for the OptiFuse CBS-6P?

The mounting type is Rail Interior Mounting.
