Mfr Part #:

CBS-2P

Mfr Name: OptiFuse

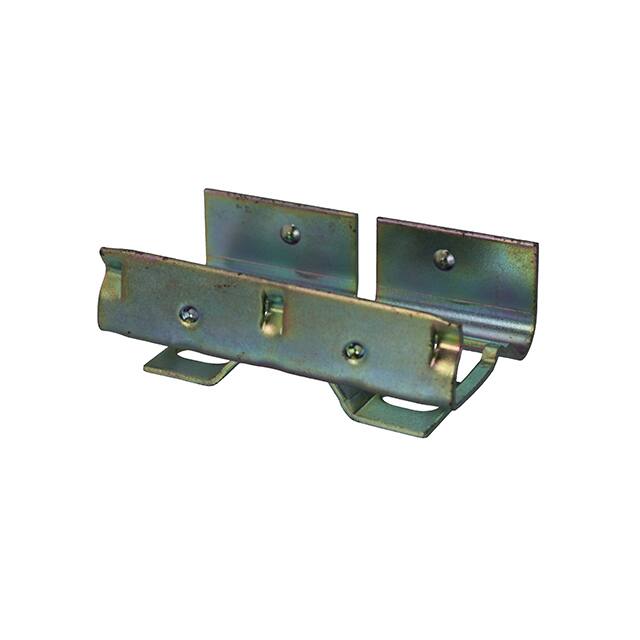

The OptiFuse CBS-2P is a mounting rail designed for use with ACB-N or MOCB-N circuit breakers. It offers rail interior mounting and accommodates up to two circuit breakers.

Stock on Request

CBS-2P Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	OptiFuse
Accessory Type	Mounting
For Use With	ACB-N, MOCB-N Circuit Breakers
Material	Steel plated with yellow zinc dichromate
Mounting Hole Spacing	1.21±0.01 [30.7±0.25]
Mounting Type	Rail Interior Mounting

View Similar Products (0)

CBS-2P Description

Short technical summary and product information.

The OptiFuse CBS-2P is a mounting rail accessory designed for circuit protection applications. Constructed from steel plated with yellow zinc dichromate, it provides a durable solution for organizing circuit breakers.

This mounting rail is specifically intended for use with OptiFuse ACB-N or MOCB-N circuit breakers. The CBS-2P model can accommodate up to two circuit breakers, facilitating a compact and organized installation. Its dimensions include a mounting hole spacing of 30.7mm (1.21 inches) and an overall length of 49.4mm (1.94 inches).

The rail features a rail interior mounting type, ensuring a secure and integrated setup within electrical enclosures. The material composition and robust design make it suitable for various automotive and industrial applications where reliable circuit breaker mounting is essential.

CBS-2P Quick Information

Product Type: Mounting Rail

Series: CBS

Canonical Name: OptiFuse CBS-2P Mounting Rail

Subcategory: Mounting Accessories

CBS-2P Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CBS-2P Features

Steel construction with yellow zinc dichromate plating.
Accommodates up to 2 circuit breakers.
Designed for ACB-N and MOCB-N breakers.
Rail interior mounting type.
Compact dimensions for efficient installation.

CBS-2P Applications

Ideal for organizing circuit breakers.
Suitable for automotive applications.
Used in electrical control panels.
Facilitates compact breaker installations.

CBS-2P FAQs

5 frequently asked questions generated from this part’s specifications.

What type of circuit breakers can be used with the OptiFuse CBS-2P mounting rail?

The CBS-2P mounting rail is designed to be used with OptiFuse ACB-N or MOCB-N circuit breakers.

How many circuit breakers can the CBS-2P mounting rail accommodate?

The CBS-2P mounting rail can accommodate up to 2 circuit breakers.

What are the mounting dimensions for the OptiFuse CBS-2P?

The mounting hole spacing (A) is 30.7mm [1.21 inches] and the overall length (B) is 49.4mm [1.94 inches].

What material is the OptiFuse CBS-2P mounting rail made of?

The mounting rail is made of steel plated with yellow zinc dichromate.

What is the mounting type for the CBS-2P rail?

The CBS-2P rail features rail interior mounting.
