| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

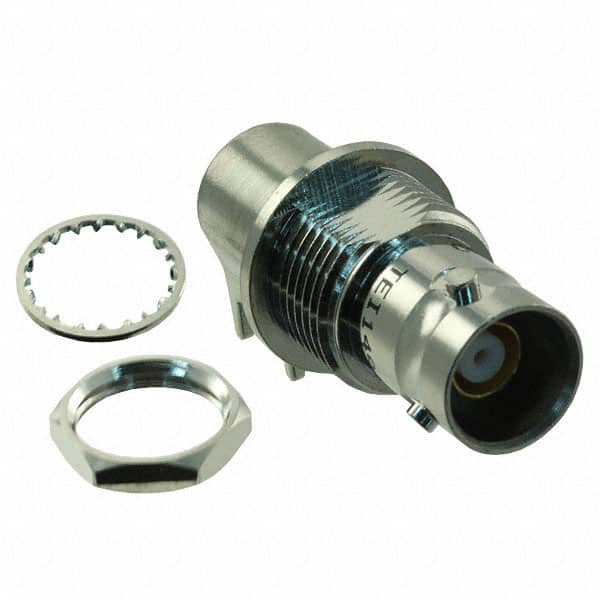

The CBBJR79 is a TRB (twinaxial/triaxial) connector from Cinch, featuring a jack female socket concentric design. It supports panel mount, through hole, right angle installation with a bulkhead front side nut. The bayonet lock fastening type ensures secure connection. Electrical specifications include a frequency rating of 500 MHz and non-constant impedance. The center contact is made of beryllium copper, and both contact and shield terminations are solder. The housing is silver and includes a three-lug feature. This connector is designed for coaxial RF applications, with a single port configuration.
Panel mount, through hole, right angle with bulkhead front side nut.
500 MHz.
Bayonet lock.
TRB, twinaxial/triaxial.
Beryllium copper.
Non-constant.
Contact termination: solder; shield termination: solder.
