| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

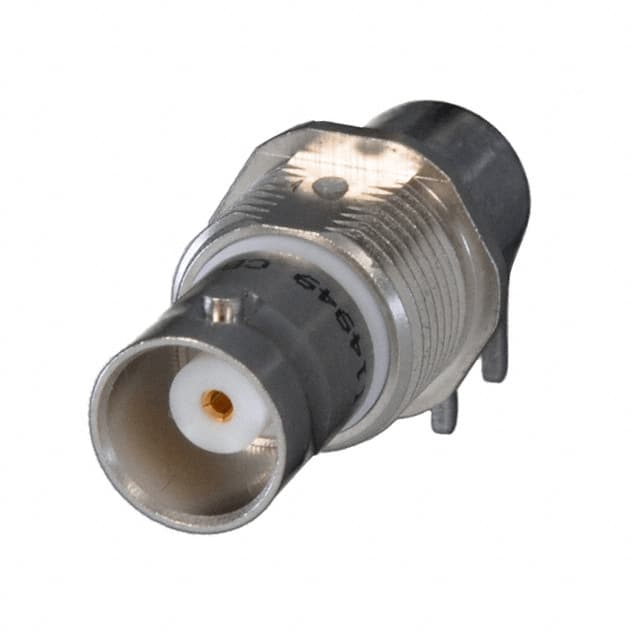

The Cinch CBBJR26 is a BNC jack, female socket coaxial connector designed for 50 Ohm impedance systems. It supports frequencies up to 4 GHz, making it suitable for RF signal applications.
This connector uses a bayonet lock fastening type for secure mating. It is configured for panel mount with a bulkhead front side nut and through hole, right angle orientation for PCB mounting. Both contact and shield terminations are solder type.
The housing is silver in color. This single-port connector is intended for use in coaxial RF assemblies where reliable signal integrity is required.
50 Ohm.
4 GHz.
BNC jack, female socket.
Panel mount, through hole, right angle with bulkhead front side nut.
Solder for both contact and shield.
