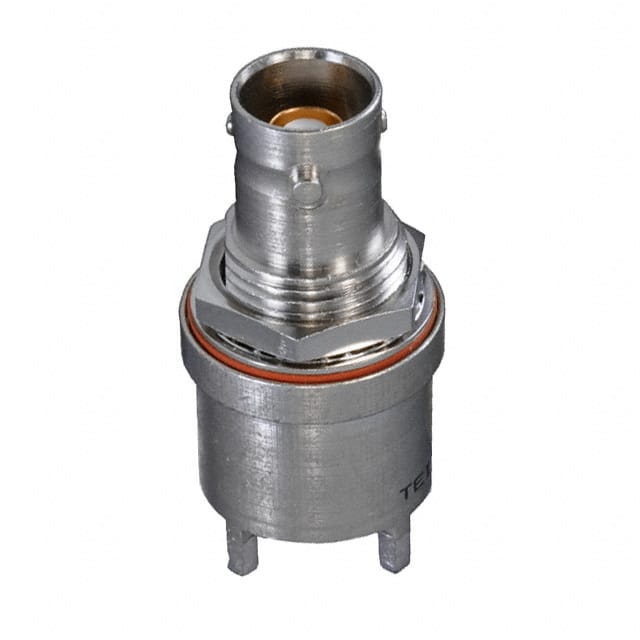

The CBBJ79 from Cinch Connectivity Solutions is a TRB (Twinaxial/Triaxial) jack connector designed for circuit board mounting with a bulkhead front side nut feature. It features a female socket (concentric) contact, bayonet lock fastening, and solder termination for both center and shield. The connector has a silver housing and a center contact made of beryllium copper. It is rated for a maximum frequency of 500 MHz with non-constant impedance.
This connector is designed for MIL-STD-1553B applications, making it suitable for avionics and military data bus systems. The three-lug mechanical interface ensures secure mating with compatible cables. For right-angle configurations, the manufacturer offers the CBBJR79 variant.
The package supports panel mount and through hole mounting with a bulkhead feature. The part is listed as RoHS3 compliant and REACH unaffected, though these compliances are unverified. It has an MSL of 1 (unlimited) and is available for order with a DigiKey part number 1097-1043-ND.
Panel Mount, Through Hole with Bulkhead - Front Side Nut.
Non-Constant.
500 MHz.
TRB, Twinaxial/Triaxial.
Bayonet Lock.
Solder for both contact and shield.
Yes, it is designed for MIL-STD-1553B applications.
