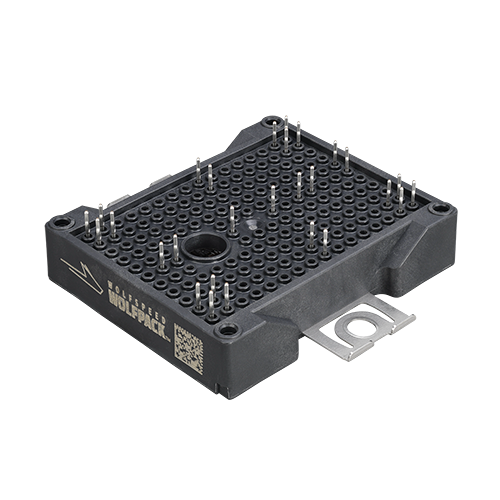

The Wolfspeed CAB7R5A23GM4T is a fully SiC MOSFET-based Half-Bridge Power Module offering ultra-low loss performance. It is designed for high-efficiency converters and inverters, energy storage systems, renewable energy applications, and DC fast chargers.
Key electrical specifications include a maximum drain-source voltage (VDS) of 2300V and a typical on-resistance (RDS(on)) of 7.5 mΩ. The module features press-fit pins for easy assembly and an Aluminium Nitride substrate for enhanced thermal performance. Optional pre-applied thermal interface material is available.
This module enables compact, lightweight systems with increased efficiency due to low switching and conduction losses inherent to SiC technology. It supports two-level conversion for 1500 VDC systems and reduces thermal requirements, contributing to lower system costs. The module conforms to UL STD 1557.
| Qty | Low | High |
|---|---|---|
| 1+ | $358.92 | $358.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 2300V.
The typical on-resistance is 7.5mΩ.
At a heatsink temperature of75°C and junction temperature ≤150°C, the continuous drain current is150A.
The operating junction temperature range is -40 to150°C.
It is a through-hole component with press-fit terminations.
Typical gate threshold voltage is 2.5V at VDS=VGS and ID=76mA.
Power dissipation is 510W at heatsink temperature of75°C and junction temperature ≤150°C.
