Mfr Part #:

CAB760M12HM3R

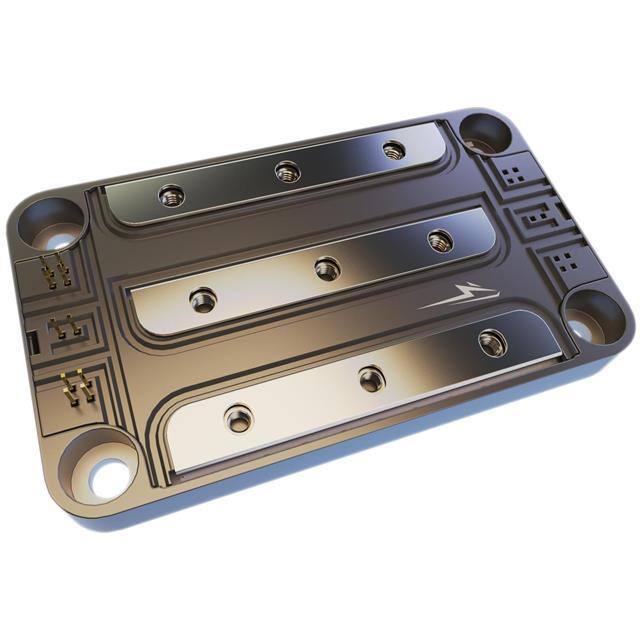

Name: CAB760M12HM3R
Brand: WOLFSPEED
SKU: CAB760M12HM3R

Mfr Name: WOLFSPEED

Description:

760A 1200V SIC HALF-BRIDGE MODUL

Stock on Request

CAB760M12HM3R Description

Short technical summary and product information.

760A 1200V SIC HALF-BRIDGE MODUL

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	WOLFSPEED
Configuration	2 N-Channel (Half Bridge)
Current	1.015kA (Tc)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Gate Charge (Qg) (Max) @ Vgs	2724nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	79400pF @ 800V
Mounting Type	Chassis Mount
Operating Temperature	-40°C ~ 175°C (TJ)
Power	50mW
Rds On (Max) @ Id, Vgs	1.73mOhm @ 760A, 15V
Supplier Device Package	Module
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6V @ 280mA
