Mfr Part #:

CAB425M12XM3

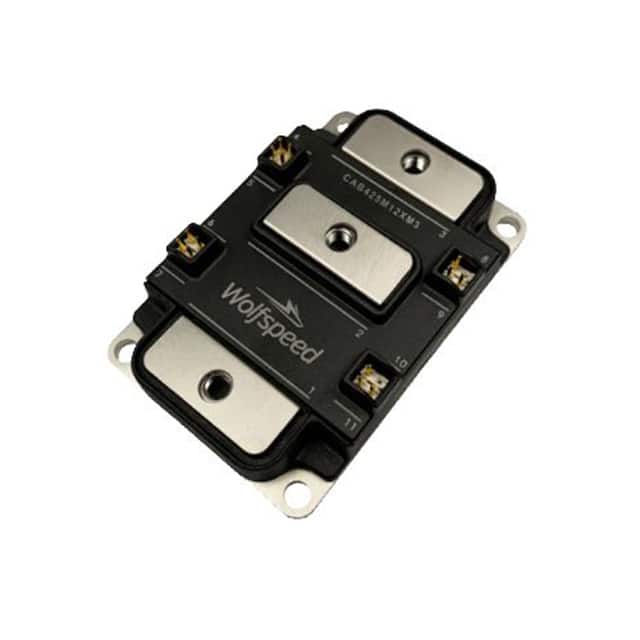

Name: CAB425M12XM3
Brand: WOLFSPEED
SKU: CAB425M12XM3

Mfr Name: WOLFSPEED

Description:

1.2KV, 425A SWITCHING LOSS OPTIM

Stock on Request

CAB425M12XM3 Description

Short technical summary and product information.

1.2KV, 425A SWITCHING LOSS OPTIM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	WOLFSPEED
Configuration	2 N-Channel (Half Bridge)
Current	450A
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Gate Charge (Qg) (Max) @ Vgs	1135nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	30.7nF @ 800V
Mounting Type	Chassis Mount
Operating Temperature	-40°C ~ 175°C (TJ)
Power	50mW
Rds On (Max) @ Id, Vgs	4.2mOhm @ 425A, 15V
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6V @ 115mA
