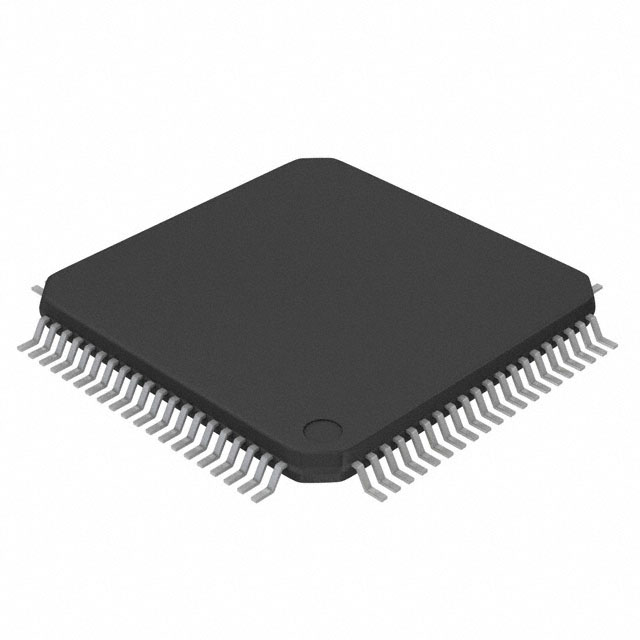

C8051F962-B-GQR IC MCU 8BIT 128KB FLASH 80TQFP. Features 8-bit 8051 core, 25 MHz speed, 128KB FLASH, 8.25KB RAM, 57 I/O, 12-bit ADC, and multiple low-power modes.
Mfr Part #:

C8051F962-B-GQR

Available from 1 distributors
Mfr Name: Silicon Labs
Silicon Labs
IC MCU 8BIT 128KB FLASH 80TQFP. Features 8-bit 8051 core, 25 MHz speed, 128KB FLASH, 8.25KB RAM, 57 I/O, 12-bit ADC, and multiple low-power modes.
✓ Total Stock: 16,820 pcs

C8051F962-B-GQR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
16,820 pcs
On Request
16820 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C8051F962-B-GQR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

C8051F962-B-GQR Description

Short technical summary and product information.

The C8051F962-B-GQR is an ultra low power 8-bit microcontroller from Silicon Labs, based on the 8051 core. It operates at up to 25 MHz and features 128KB of Flash program memory and 8.25KB of internal data RAM. The device includes 57 general-purpose I/O pins, all 5V tolerant, and supports connectivity via I2C, SPI, and UART/USART interfaces.



Key analog peripherals include a 12-bit ADC with 16 channels (up to 75 ksps in 12-bit mode or 300 ksps in 10-bit mode), two low-power comparators, and an integrated temperature sensor. The MCU also features a hardware AES encryption engine, DMA controller, and CRC for data processing acceleration. An integrated LCD controller supports up to 128 segments (32x4).



The device is designed for ultra low power consumption, with active current of 130 µA/MHz (dc-dc enabled) and sleep currents as low as 120 nA with data retention. It includes a dc-dc buck converter for dynamic voltage scaling, a SmaRTClock oscillator, and multiple sleep modes. The package is 80-TQFP (12x12mm) surface mount, rated for -40°C to 85°C operation.

C8051F962-B-GQR Quick Information

Product Type: Microcontroller
Canonical Name: C8051F962-B-GQR 8-bit Microcontroller with 128KB Flash
Subcategory: 8-bit Microcontroller

C8051F962-B-GQR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C8051F962-B-GQR Features

  • Ultra low power 8051 core microcontroller.
  • 128KB Flash and 8.25KB RAM memory.
  • Integrated 12-bit ADC with 16 channels.
  • 57 I/O pins with 5V tolerance.
  • Hardware AES encryption and DMA controller.

C8051F962-B-GQR Applications

  • Ideal for battery-powered wireless sensor nodes.
  • Suitable for metering and LCD display applications.
  • Used in smart grid and industrial control systems.
  • Perfect for low-power IoT edge devices.
  • Applicable in portable medical devices.

C8051F962-B-GQR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the C8051F962-B-GQR?

1.8V to 3.8V.

What is the package type of the C8051F962-B-GQR?

80-TQFP (12x12mm) surface mount.

What is the operating temperature range?

-40°C to 85°C.

Is the C8051F962-B-GQR RoHS compliant?

It is listed as RoHS3 Compliant, but this status is unverified. Verify with official documentation.

What is the maximum clock speed?

25 MHz.

How many I/O pins does it have?

57.

What are the low power sleep modes?

120 nA with data retention and POR enabled, 450 nA with SmaRTClock internal LFO, 600 nA with SmaRTClock external crystal.
