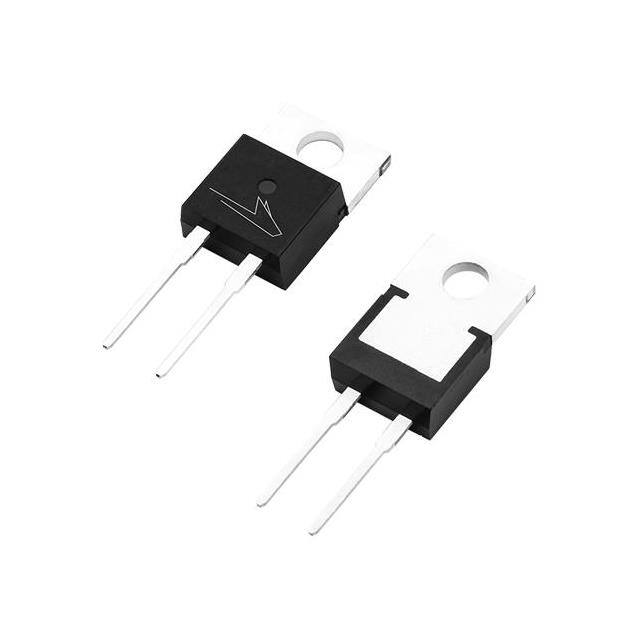

The C6D20065A is a 650V, 66A Silicon Carbide (SiC) Schottky barrier diode from Wolfspeed, packaged in a TO-220-2 through-hole package. This diode offers zero reverse recovery current and forward recovery voltage, enabling higher efficiency and switching frequencies compared to silicon-based solutions.
Key electrical specifications include a maximum repetitive peak reverse voltage of 650V, a continuous forward current of 66A at 25°C (21A at 125°C and 150°C), and a typical forward voltage of 1.27V at 20A and 25°C. The device can handle non-repetitive surge currents up to 125A (10 ms half-sine) and 1475A (10 µs pulse). Total capacitive charge is 62 nC typical at 400V.
The diode operates over a junction temperature range of -55°C to 175°C and has a maximum power dissipation of 166W at 25°C. Its temperature-independent switching behavior and positive temperature coefficient of forward voltage make it suitable for paralleling without thermal runaway concerns.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.54 | $7.54 |
| 10+ | $6.81 | $6.81 |
| 100+ | $5.64 | $5.64 |
| 500+ | $4.91 | $4.91 |
| 1,000+ | $4.28 | $4.28 |
| 2,000+ | $4.12 | $4.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage (VRRM) is 650 V.
The continuous forward current (IF) is 66 A at TC = 25 °C, and 21 A at TC = 125 °C and TC = 150 °C.
The typical forward voltage (VF) is 1.27 V at IF = 20 A and Tj = 25 °C, with a maximum of 1.50 V. At Tj = 175 °C, typical VF is 1.37 V with a maximum of 1.60 V.
No, the C6D20065A has zero reverse recovery time (trr = 0 ns) due to its Silicon Carbide Schottky technology.
The C6D20065A is available in a TO-220-2 through-hole package.
The operating temperature range is -55°C to 175°C.
The total capacitive charge (QC) is 62 nC typical at VR = 400 V and Tj = 25 °C.
