| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,330 pcs
|
2330 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Current - Average Rectified (Io) | |
| Current - Reverse Leakage @ Vr | |
| Forward Voltage (Maximum @ If = 2 A) | |
| Forward Voltage (Typical @ If = 2 A, Tj = 175 °C) | |
| Mounting Type | |
| Non-Repetitive Peak Forward Surge Current @ tp = 10 µs | |
| Operating Temperature | |
| Operating Temperature - Junction | |
| Package / Case | |
| Power Dissipation (Ptot) @ Tc = 25°C | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |

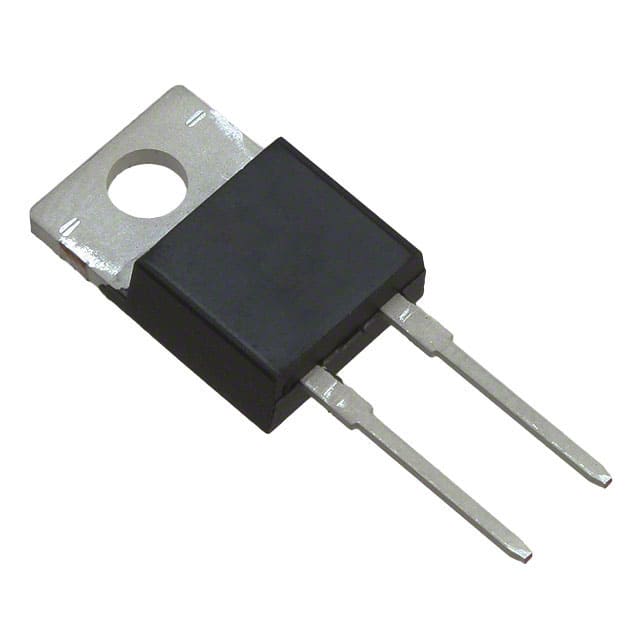

The C4D02120A is a 1200V, 10A Silicon Carbide (SiC) Schottky diode manufactured by Wolfspeed. It is designed for high-efficiency power conversion applications requiring fast switching and low losses. The diode offers a maximum DC blocking voltage of 1200V and an average rectified current rating of 10A.
This SiC Schottky diode features a low forward voltage drop of 1.8V maximum at 2A forward current, with a positive temperature coefficient. It exhibits zero reverse recovery current (trr=0 ns), enabling high-frequency operation with minimal switching losses. Reverse leakage current is 50 µA maximum at rated voltage and 25°C. Power dissipation is rated at 60W at 25°C case temperature, and non-repetitive peak forward surge current is 200A for a 10 µs pulse.
The diode is housed in a TO-220-2 through-hole package with an operating junction temperature range of -55°C to 175°C. Typical applications include industrial switched-mode power supplies, boost PFC stages, DC-DC converters, uninterruptible power supplies, and solar inverters. The part is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
1200 V.
10 A.
Maximum 1.8 V at 2A, typical 1.9 V at 2A and 175°C.
Zero nanoseconds (no recovery time).
TO-220-2 through-hole.
-55°C to 175°C.
60 W at case temperature 25°C.
