| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,500 pcs
|
8500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The C3M0065100J is a 1000V, 35A N-Channel Silicon Carbide Power MOSFET from Wolfspeed, employing C3M SiC MOSFET technology. It features a maximum drain-source on-resistance of 78mOhm at 20A and 15V gate drive, with a typical value of 65mOhm at 25°C. The device offers a low gate charge of 35nC and 660pF input capacitance, enabling high-frequency switching.
Designed for high-voltage power conversion, the C3M0065100J is suitable for renewable energy inverters, EV battery chargers, high-voltage DC/DC converters, and switch-mode power supplies. Its fast intrinsic diode with low reverse recovery charge and low output capacitance (60pF) contribute to reduced switching losses.

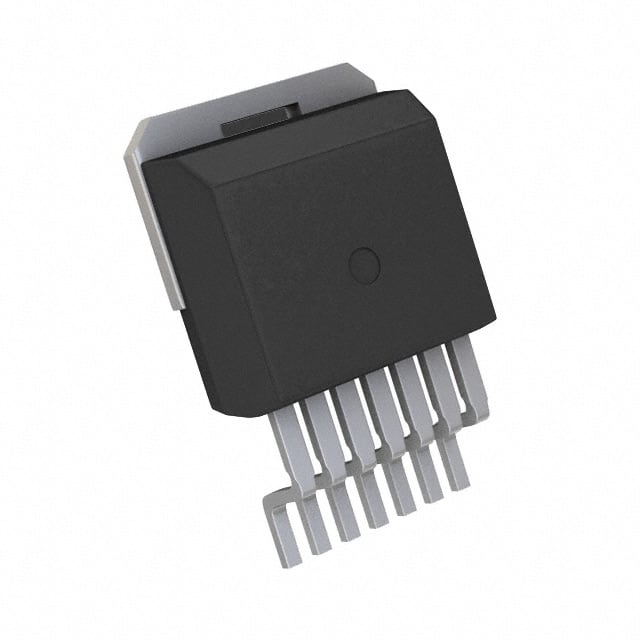

The MOSFET is housed in a TO-263-8 (D2PAK-7) surface-mount package, offering 7mm creepage distance between drain and source. It supports a maximum junction temperature of 150°C and has a power dissipation capability of 113.5W at 25°C case temperature. The device is RoHS compliant and halogen free.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.86 | $24.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating junction temperature range is -55°C to 150°C.
Yes, it is RoHS3 compliant and halogen free.
It is available in a TO-263-8 (D2PAK-7) surface-mount package.
The maximum drain-source voltage is 1000V.
The continuous drain current is 35A at 25°C case temperature.
The typical on-resistance is 65mOhm at 20A and 15V gate drive at 25°C.
The maximum gate charge is 35nC at 15V gate drive.
