| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,238 pcs
|
3238 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

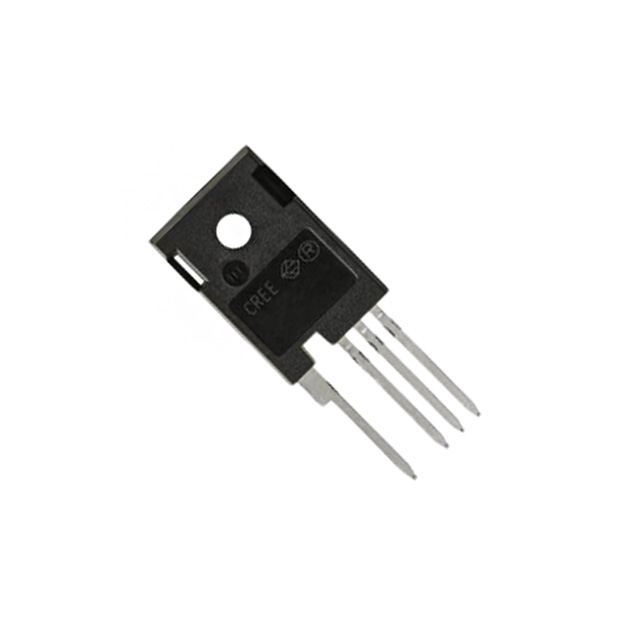

The C3M0021120K is a third-generation Silicon Carbide (SiC) N-Channel enhancement mode power MOSFET from Wolfspeed. It is designed for high-voltage, high-efficiency power conversion applications. Key electrical specifications include a drain-source voltage of 1200V, continuous drain current of 100A at 25°C, and a typical on-resistance of 21 mΩ at 15V gate drive. The device features low gate charge (162 nC) and low output capacitance (180 pF), enabling high-frequency switching with reduced losses. The TO-247-4L package provides a separate driver source pin for optimized gate drive and reduced ringing. With an operating junction temperature range of -40°C to 175°C and a maximum power dissipation of 469W, this MOSFET is suitable for demanding applications such as solar inverters, EV motor drives, and high-voltage DC/DC converters. The device is halogen-free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.45 | $23.45 |
| 30+ | $14.78 | $14.78 |
| 60+ | $13.75 | $13.75 |
| 120+ | $12.88 | $12.88 |
| 510+ | $11.79 | $11.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage rating is 1200V.
It is available in a TO-247-4 package (supplier device package TO-247-4L).
The operating junction temperature range is -40°C to 175°C.
Yes, it is RoHS3 compliant and halogen-free per the datasheet.
The typical on-resistance is 21 mΩ at Vgs=15V, Id=50A, Tj=25°C.
The recommended turn-on gate voltage is 15V with ±5% regulation tolerance.
The maximum continuous drain current is 100A at Tc=25°C.
