| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
588 pcs
|
588 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Continuous Forward Current (Nominal @ TC = 25 °C) | |
| Continuous Forward Current (Nominal) | |
| Current | |
| DC Blocking Voltage | |
| Diode dV/dt Ruggedness | |
| Forward Voltage (Nominal @ IF = 4 A) | |
| Forward Voltage (Typical/Maximum @ If = 4 A, Tj = 25 °C) | |
| Mounting Type | |
| Non-Repetitive Peak Forward Surge Current @ tP = 10 µs, TC = 25 °C | |
| Operating Junction and Storage Temperature | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation (@ TC = 25 °C) | |
| Reverse Current @ VR = 650 V, TJ = 25 °C | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Total Capacitive Charge | |
| Voltage |

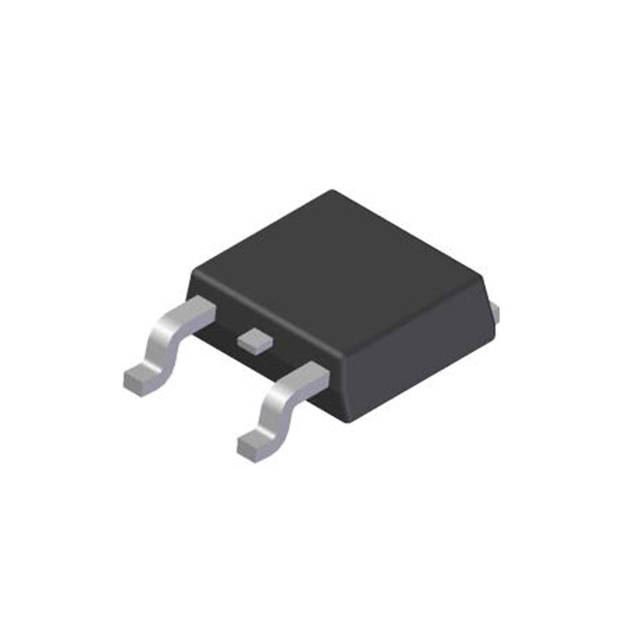

The Wolfspeed C3D04065E-TR is a 650-volt, 13.5-amp silicon carbide (SiC) Schottky rectifier designed for high-efficiency power conversion. It features a maximum DC blocking voltage of 650V and a continuous forward current rating of 13.5A at a case temperature of 25°C. The device exhibits a typical forward voltage of 1.4V at 4A and a very low typical reverse leakage current of 6µA at 650V. A key advantage of SiC Schottky technology is the zero reverse recovery current and zero forward recovery voltage, which eliminates switching losses and enables high-frequency operation.
This diode is optimized for boost diode applications in power factor correction (PFC) circuits and as a freewheeling diode in inverter stages. It offers a non-repetitive peak forward surge current capability of 220A (10µs pulse) and a dV/dt ruggedness of 200 V/ns. The positive temperature coefficient on forward voltage ensures easy paralleling of devices without thermal runaway.
The C3D04065E-TR is supplied in a surface-mount TO-252-2 (DPak) package with an operating junction temperature range of -55°C to +175°C. Total capacitive charge is 10nC, making it suitable for high-speed switching applications such as switch-mode power supplies and AC/DC converters.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 200+ | $0.49 | $0.49 |
| 500+ | $0.48 | $0.48 |
| 1,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
650 V.
13.5 A at TC = 25 °C.
1.4 V typical, 1.7 V maximum at IF = 4 A, TJ = 25 °C.
0 ns (zero reverse recovery current).
TO-252-3, DPak (2 Leads + Tab), SC-63; supplier device package TO-252-2.
-55°C to +175°C.
52 W at TC = 25 °C.
