| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The Wolfspeed C2M0080120D is a 1200V, 36A N-Channel enhancement-mode Silicon Carbide (SiC) power MOSFET built on C2M MOSFET technology. It offers a low maximum on-resistance of 98 mOhm at 20A and 20V gate drive, enabling high efficiency in power conversion systems.
This device features a maximum gate charge of 62 nC and an input capacitance of 950 pF at 1000V drain-source voltage, supporting high-speed switching with reduced switching losses. The maximum power dissipation is 192W at 25°C case temperature, and the operating junction temperature range is -55°C to 150°C.

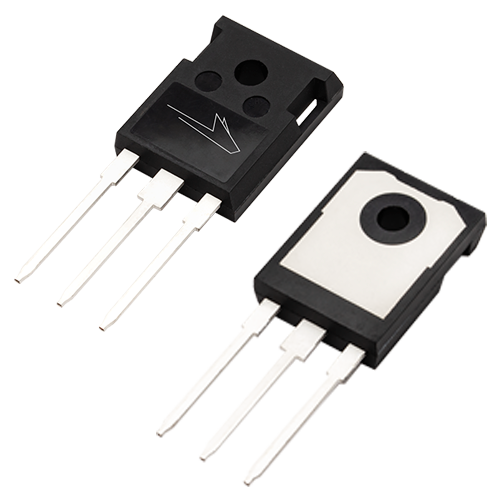

The C2M0080120D is housed in a through-hole TO-247-3 package, suitable for high-power applications such as solar inverters, switch mode power supplies, high voltage DC/DC converters, battery chargers, and motor drives. The device is halogen free and RoHS compliant.
The drain-source voltage (Vdss) is 1200 V.
The continuous drain current (Id) is 36 A at Tc=25°C.
The maximum on-resistance (Rds On) is 98 mOhm at Id=20A and Vgs=20V.
The operating junction temperature range is -55°C to 150°C.
It comes in a through-hole TO-247-3 package.
Yes, it is stated as RoHS compliant and halogen free in the datasheet.
The maximum gate charge (Qg) is 62 nC at Vgs=5V.
