| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,850 pcs
|
1850 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Features | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

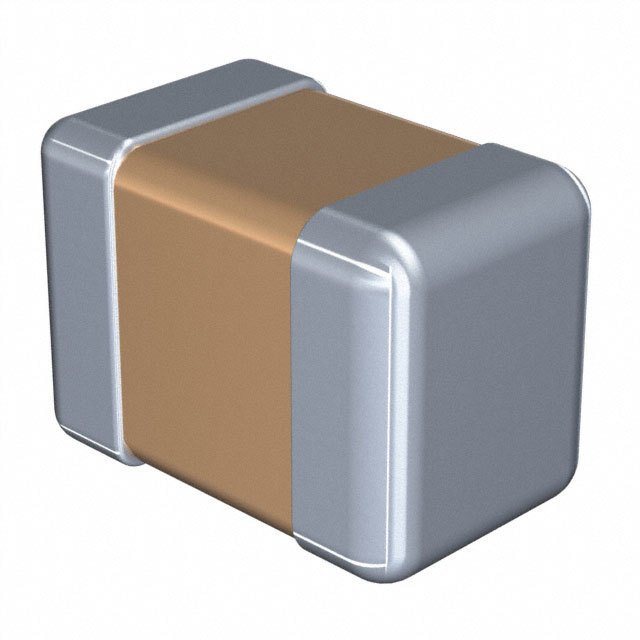

The TDK C2012X5R0J226K125AB is a surface-mount multilayer ceramic chip capacitor designed for general purpose electronic circuits. It offers a capacitance of 22 µF with ±10% tolerance and a rated voltage of 6.3V DC.
The X5R temperature coefficient provides stable capacitance over an operating temperature range of -55°C to +85°C, making it suitable for consumer and industrial environments. The component features low equivalent series inductance (ESL), beneficial for decoupling and bypass applications.
Packaged in the standard 0805 (2012 metric) footprint, it has a compact size of 2.00mm x 1.25mm with a maximum thickness of 1.45mm. The mounting type is Surface Mount, MLCC, enabling automated assembly in high-density PCBs.
This capacitor is RoHS3 compliant and MSL Level 1 with unlimited floor life, simplifying handling and storage. It is part of TDK's C series commercial grade MLCCs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.32 | $0.32 |
| 50+ | $0.24 | $0.24 |
| 100+ | $0.21 | $0.21 |
| 500+ | $0.15 | $0.15 |
| 1,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 22 µF with ±10% tolerance.
The rated DC voltage is 6.3V.
X5R, operating temperature range -55°C to +85°C.
0805 (2012 Metric) — dimensions 2.00mm x 1.25mm, max thickness 1.45mm.
Surface Mount, MLCC.
It features Low ESL (equivalent series inductance).
It is listed as RoHS3 Compliant (unverified).
