| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41,020 pcs
|
41020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Voltage |
The BZX884-C36,315 is a general-purpose Zener diode from Nexperia's BZX884 series, designed for voltage regulation in compact electronic circuits. It offers a nominal Zener voltage of 36V with a tolerance of ±5%, making it suitable for precise voltage reference and clamping applications.
With a maximum power dissipation of 250mW at 25°C ambient temperature (when mounted on standard FR4 PCB), this diode provides reliable performance in low-power regulation tasks. The forward voltage is typically 0.9V at 10mA, and the maximum Zener impedance is 90Ω. Reverse leakage current is limited to 50nA at 25.2V reverse voltage.

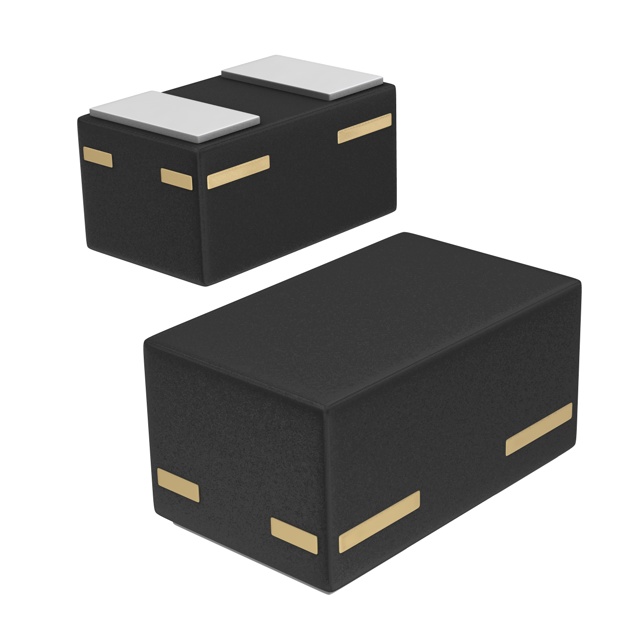

The device is housed in an ultra-small leadless SOD-882 package (also known as DFN1006-2) with dimensions 1.0 x 0.6 x 0.5 mm, ideal for space-constrained surface mount designs. It is AEC-Q101 qualified, supporting automotive-grade reliability requirements. The operating temperature range spans -65°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.29 | $0.29 |
| 10+ | $0.17 | $0.17 |
| 100+ | $0.10 | $0.10 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.06 | $0.06 |
| 2,500+ | $0.06 | $0.06 |
| 5,000+ | $0.05 | $0.05 |
| 10,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 36V with a tolerance of ±5%.
Maximum power dissipation is 250mW at 25°C ambient temperature when mounted on an FR4 PCB.
It comes in an SOD-882 (DFN1006-2) leadless ultra-small surface mount package.
Yes, the BZX884-C36,315 is AEC-Q101 qualified for automotive applications.
Maximum forward voltage is 0.9V at a forward current of 10mA.
The operating temperature range is -65°C to 150°C.
